【GB】WIND X98 R2 Normal Keyboard

【GB】WIND X98 R2 Normal Keyboard

$320.00 USD
$320.00 USD
Sale Sold out
Shipping calculated at checkout.

Price：Wired $320, Bluetooth $335

Group Buy Date: 28th Dec 2023 to 11th Jan 2024

Group Buy Payment: On our vendor list according to your country address.

All parts are compatible (ect pcb,plate,foam)between normal keyboard and southpaw keyboard, except top upper case.So if you buy normal keyboard and an extra southpaw top upper case, then it can change to a southpaw keyboard.

Check southpaw keyboard link

Check extra part link

WIND X98 R2 all parts are not compatible with WIND X98 R1.

wind x98 r2 vendor list

The wind x98 r2 product page will happen on their site sooner or later.

USA:
https://divinikey.com/

Canada:https://www.ashkeebs.com/

Korea:https://www.monstargears.com/

Vietnam:https://thekeebs.store/

Thailand:https://ntchkeys.com/

Malaysia：https://www.rebultkeyboards.com/

Philippines：https://zionstudios.ph/

Singapore：https://pantheonkeys.com/

Japan：https://basekeys.jp/

Indonesia：https://kukey.studio/

South American:https://fancycustoms.com/

Australia:https://www.switchkeys.com.au/

Europe:https://keygem.com/

United Kingdom:https://mechboards.co.uk/

Taiwan：https://www.inpad.com.tw/

Others：https://windstudio.store/collections/wind-x98-r2

Shipping: 3-6 months

wind x98 r2 extra accessories price

Check this link to buy

Wired Hotswap PCB: $20/pcs

Bluetooth Hotswap PCB: $35/pcs

Soldered PCB: $20/pcs

Foam Kit: $10/pcs

PC Plate: $15/pcs

ALU Plate: $15/pcs

FR4 Plate: $15/pcs

Brass Plate: $25/pcs

PC Front Accent Piece: $10/pcs

Brass Front Accent piece: $10/pcs

X logo: $20/pcs

Square Logo: $20/pcs

Brass Weight: $35/pcs

X Shape logo Normal Top Upper Case: $65/pcs

Square Shape logo Normal Top Upper Case: $65/pcs

X Shape logo Southpaw Top Upper Case: $65/pcs

Square Shape logo Southpaw Top Upper Case: $65/pcs

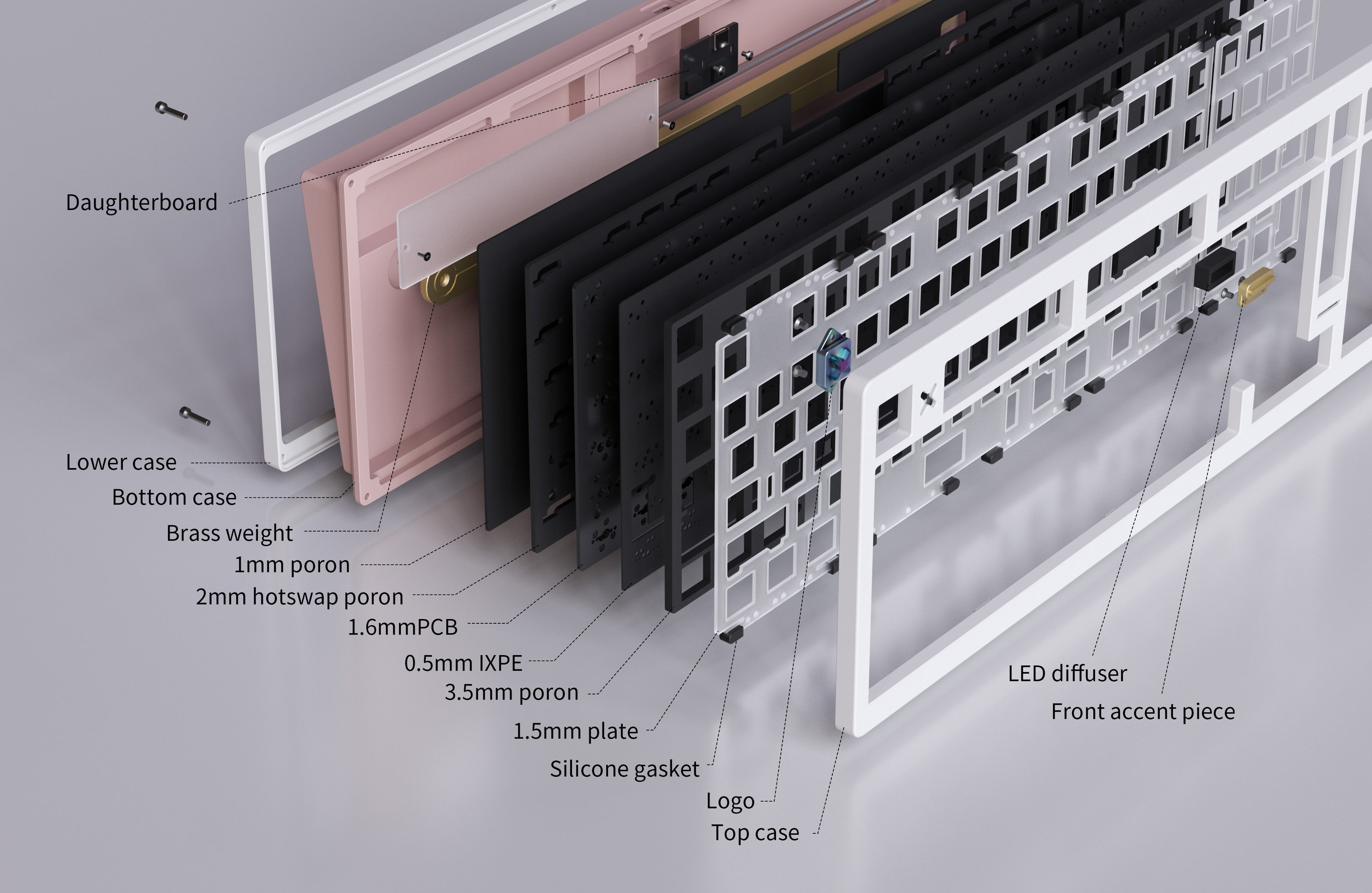

wind x98 r2 package include

  • X98 keyboard case(top case/bottom case)
  • 1.6mm No Flex Cut PCB Optional
  • 1.5mm PC Plate
  • PC front accent piece
  • X PVD logo or Square logo
  • Foam kit（1mm poron + 2mm poron + 2mm hotswap foam + 0.5mm IXPE sheet + 3.5mm poron）
  • Gateron stabilizers set(6*2U, 1*6.25U)
  • Brass weight
  • User guide
  • Accessories Bag

Note:It do not include switches and keycap

View full details

NORMAL OR SOUTHPAW

You can experience both normal and southpaw keyboard by replacing top case.

You can build ANSI or ISO hotswap layout freedom,no need to solder sockets, only need to change the direction of switches.

PC front accent pieces for those who want a CAPS indicator light. You can buy extra brass piece if you do not want caps light. The light can change or turn off on VIAL(bluetooth pcb change on LDN).

Split pcb and plate,1.6mm no flex cut pcb with 1.5mm plate, bring comfortable typing experience.

Wind X98 R2 Keyboard Feature:

  • Provide streamlined and familiar typing experience with 2U 0 key.
  • Visual symmetry by keeping the arrow keys level with the rest of the board.
  • 3 customizable keys on the left side of numpad

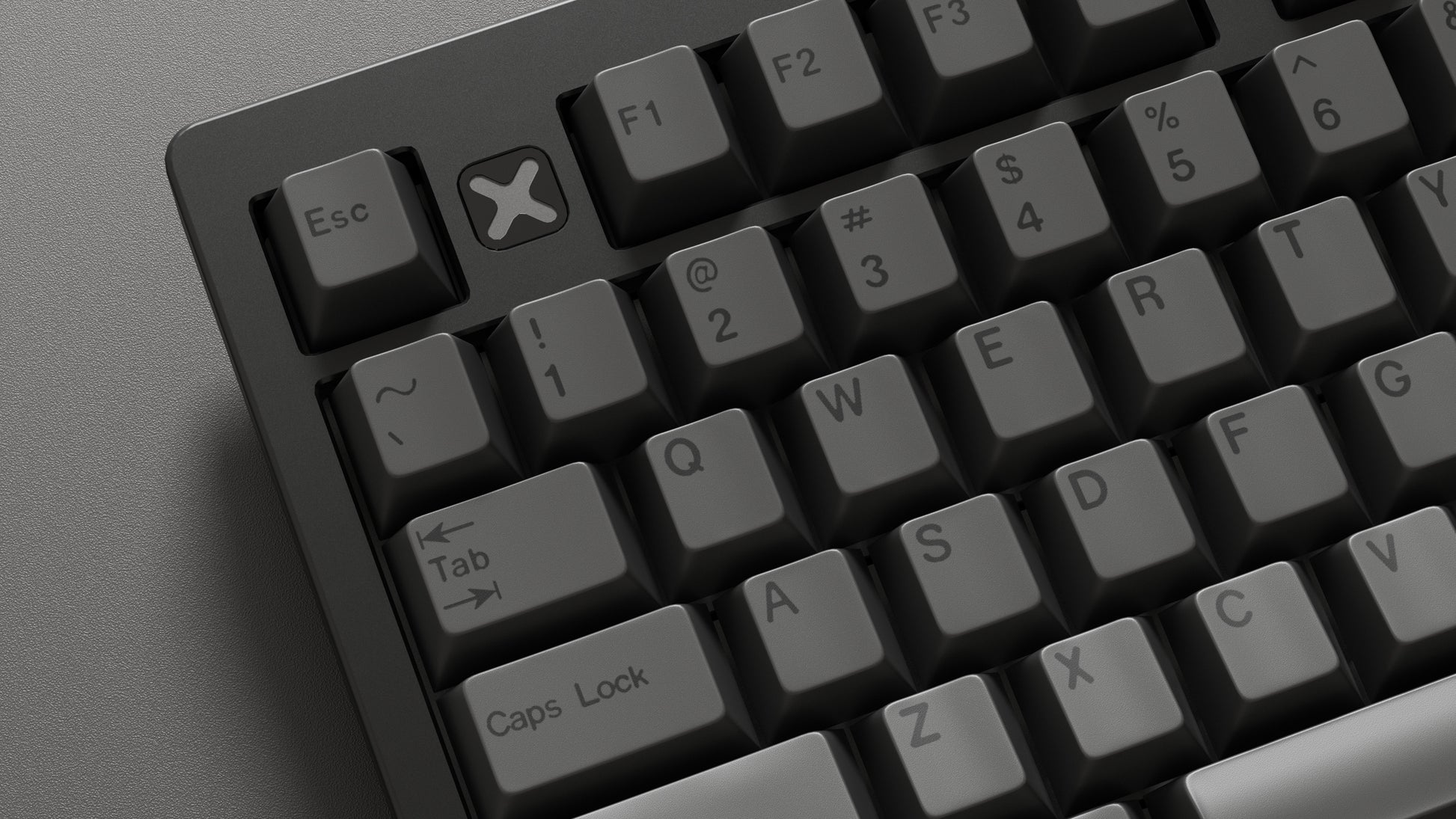

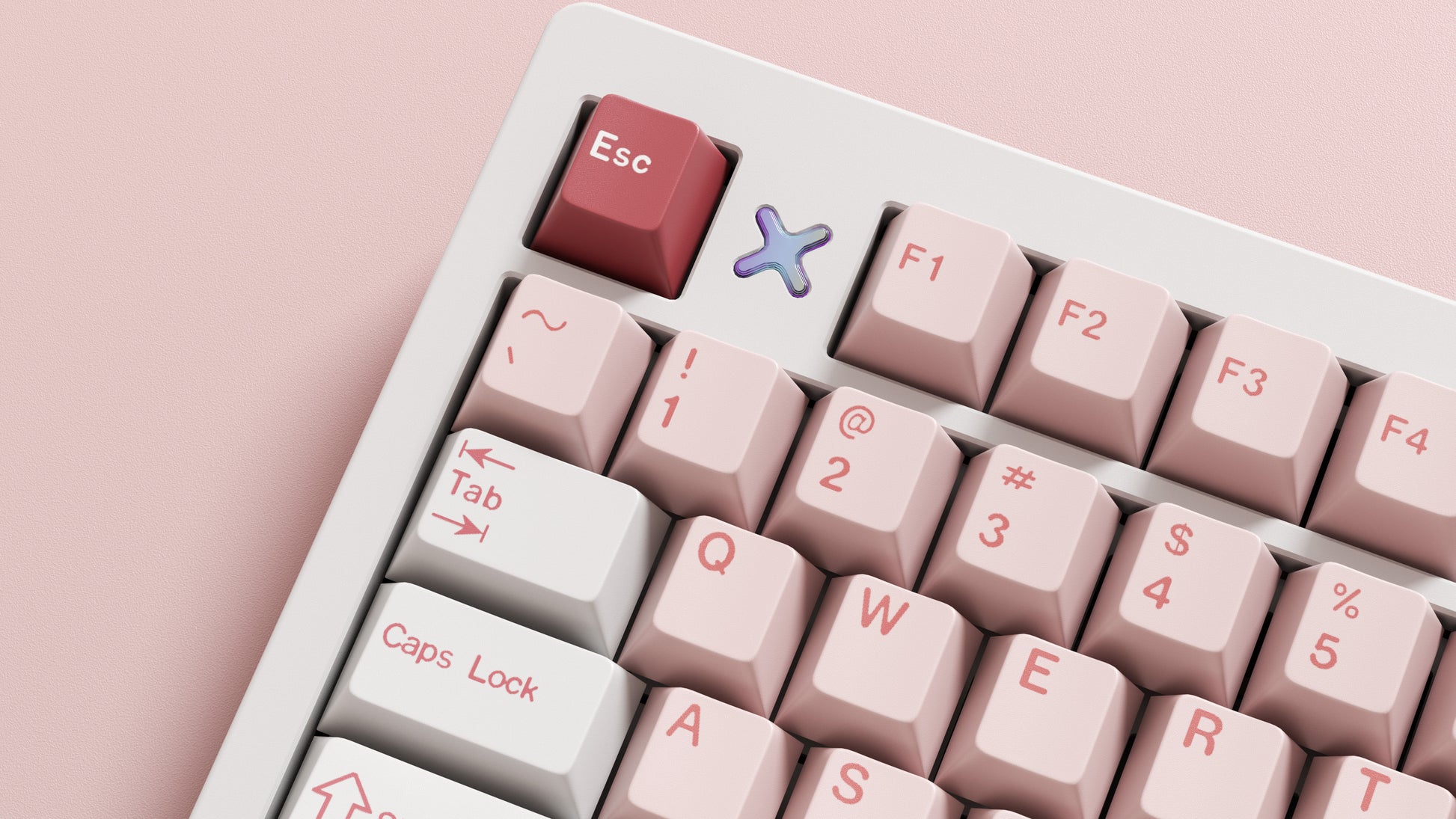

  • A PVD logo brings more visual enjoyment
  • Top mount ，plate gasket mont

WIND X98 R2 Keyboard Specification:

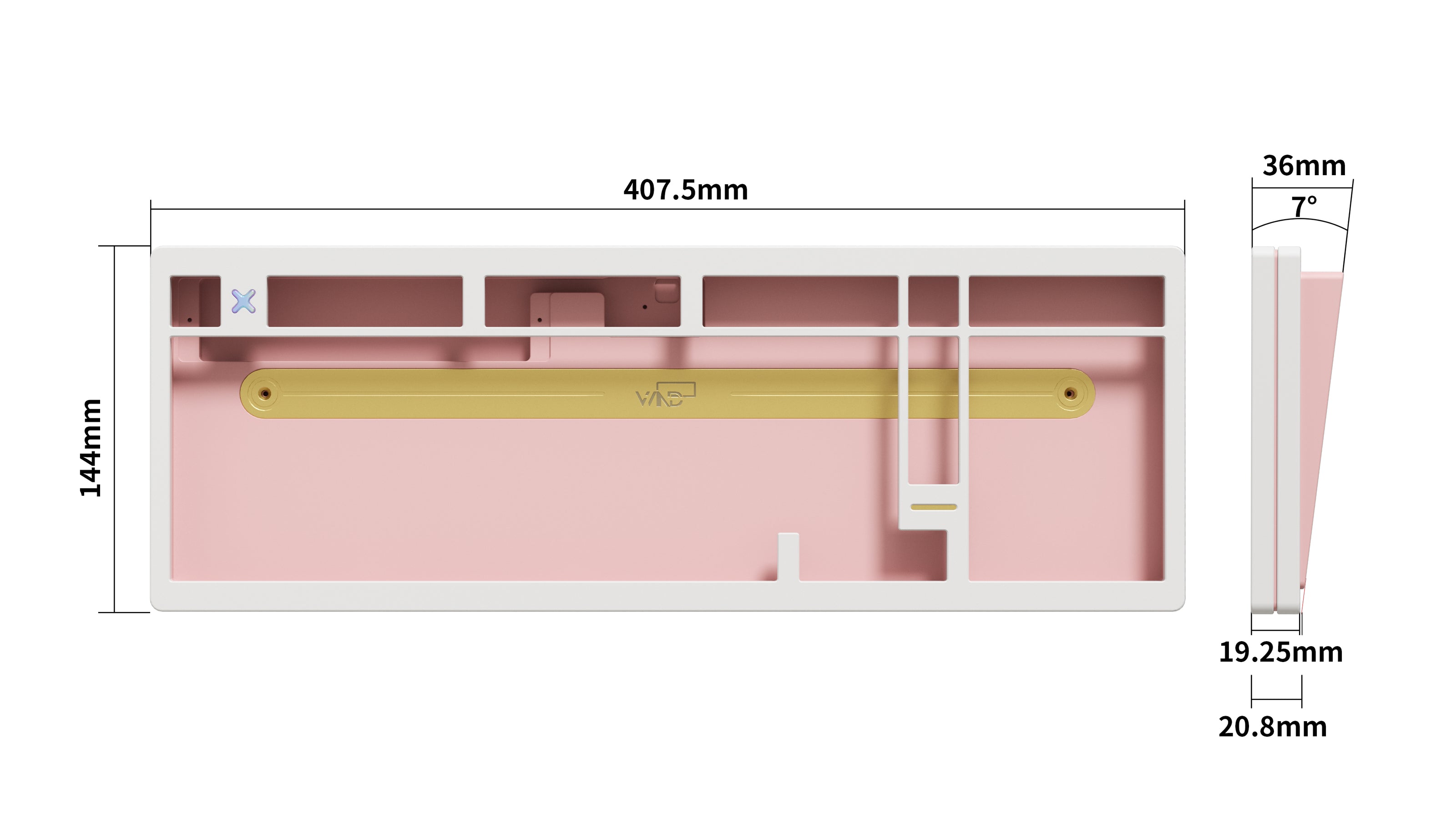

  • Size: 40.75*14.4*3.6cm
  • 7° Typing angle
  • 65% + Numpad + F Row
  • TOP mount and Plate gasket mount design
  • Price：Wired $320,Bluetooth $335
  • PCB:1.6mm no flex cut black core board fr4.

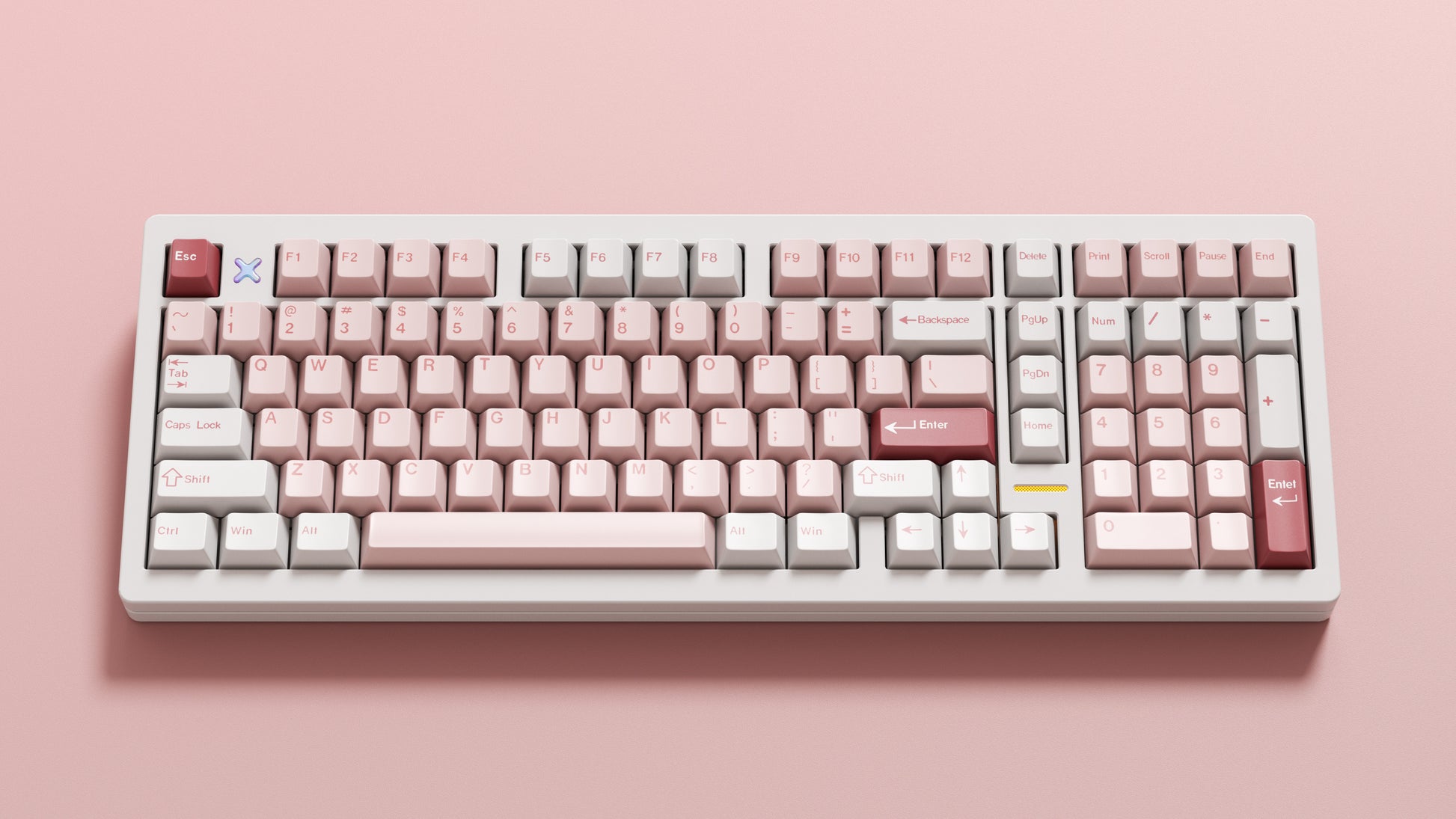

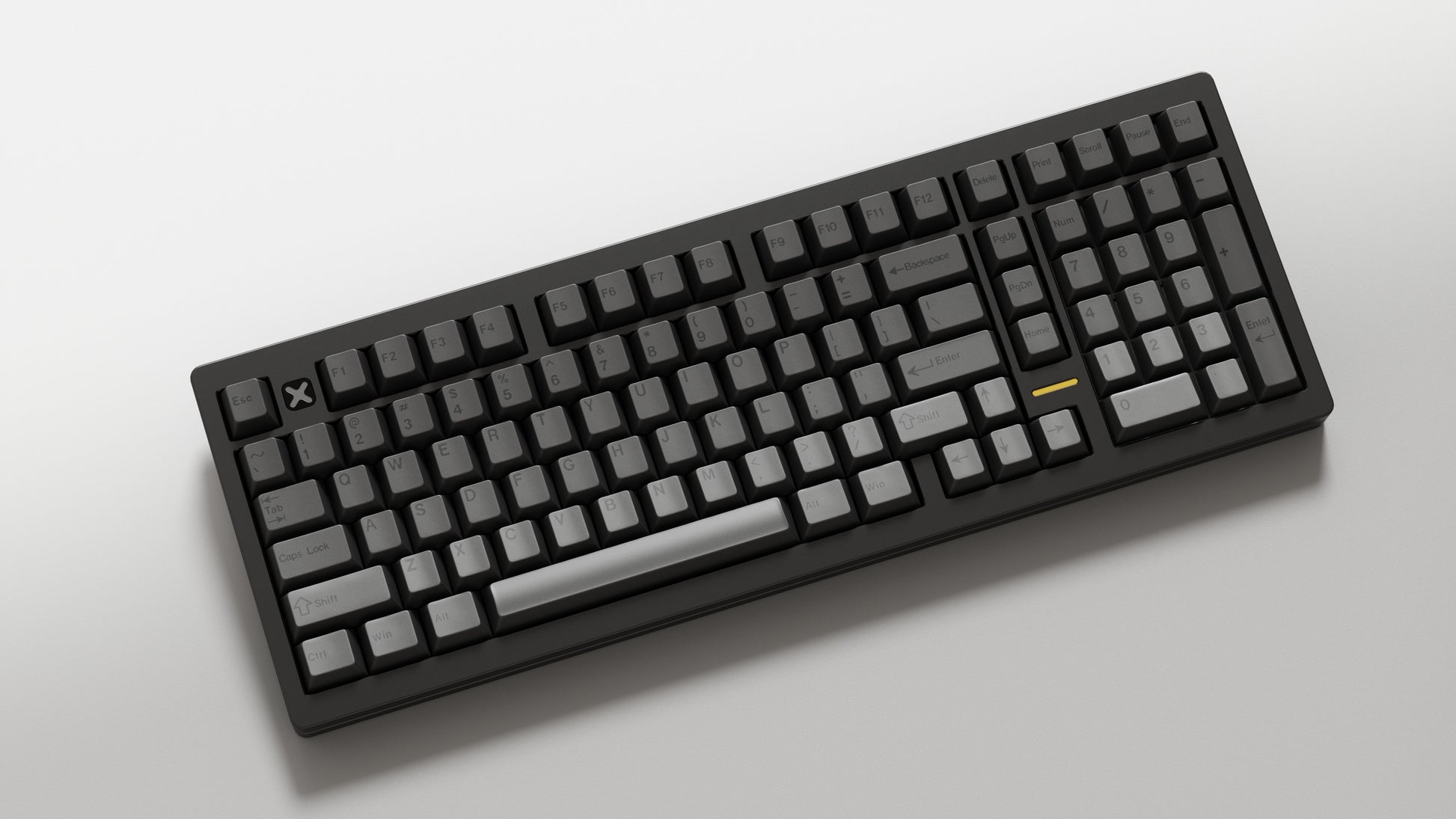

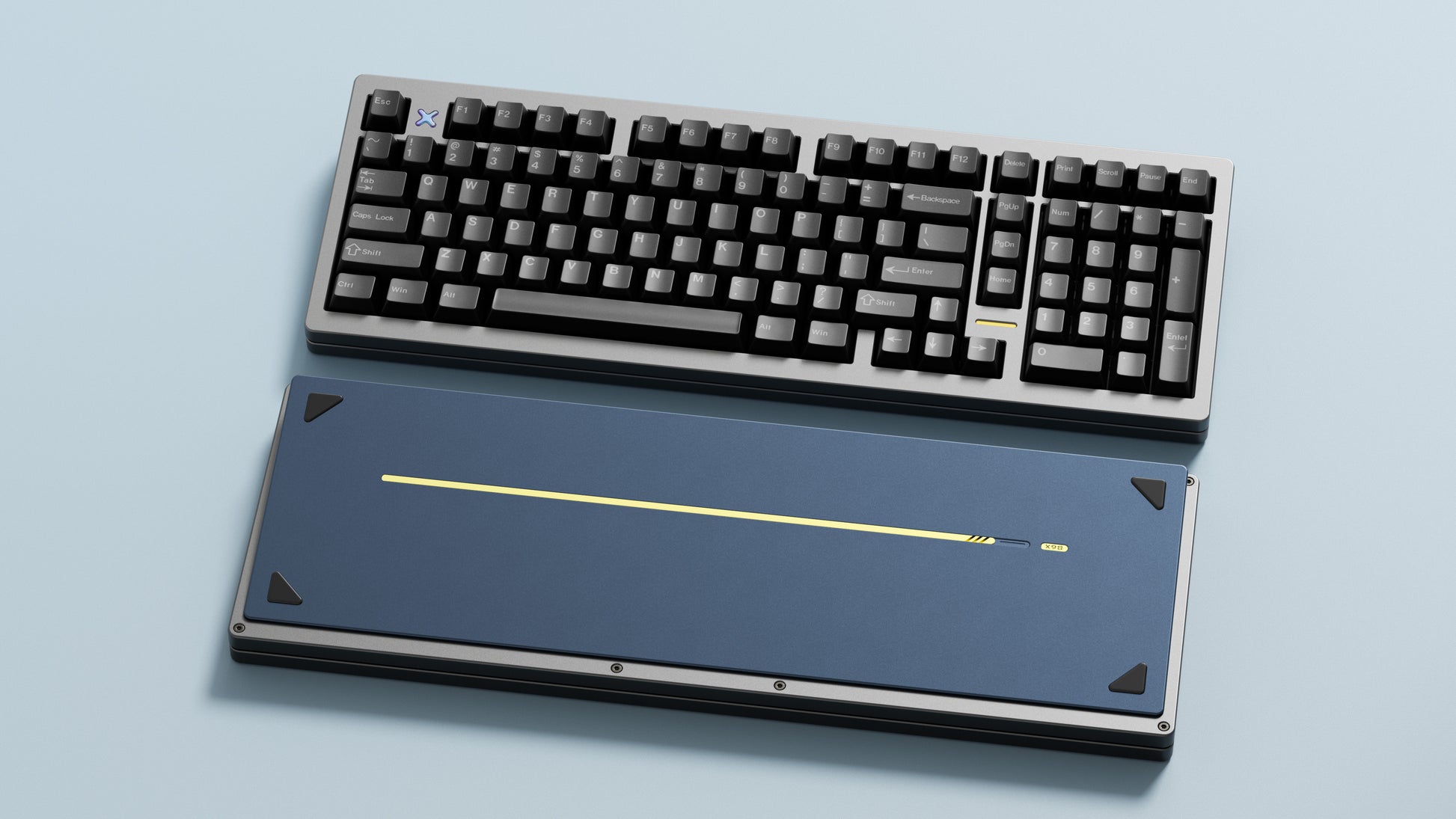

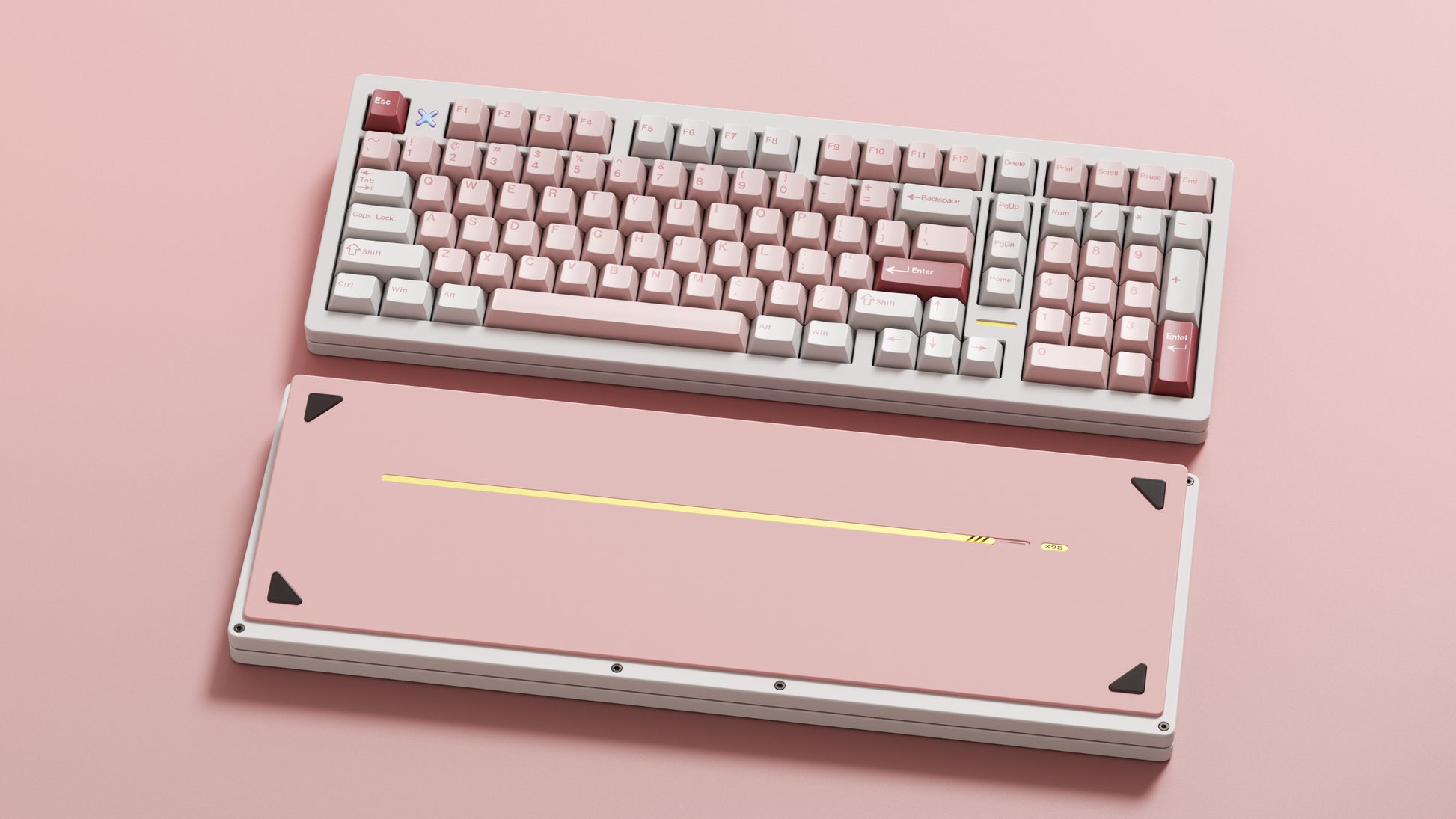

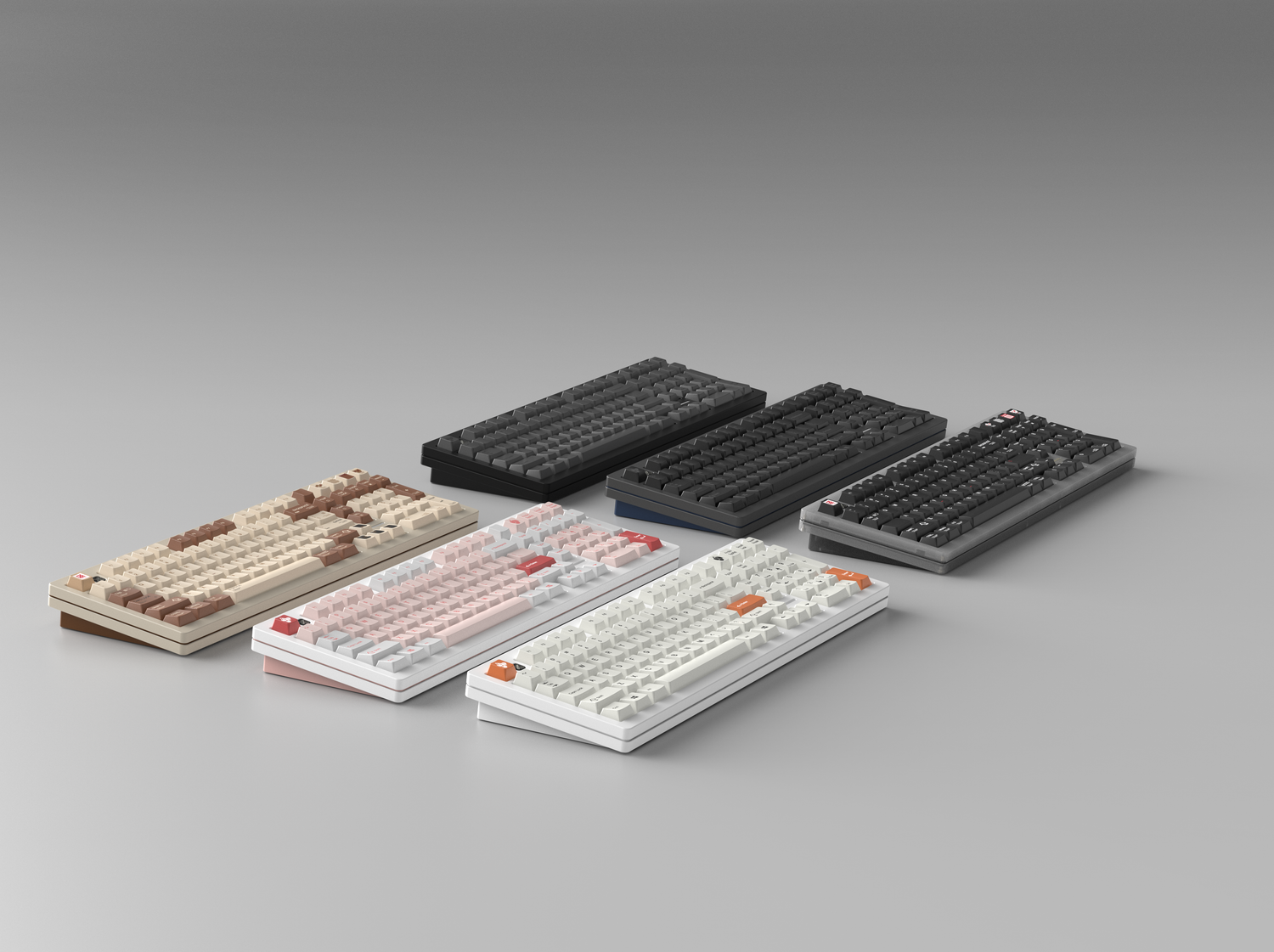

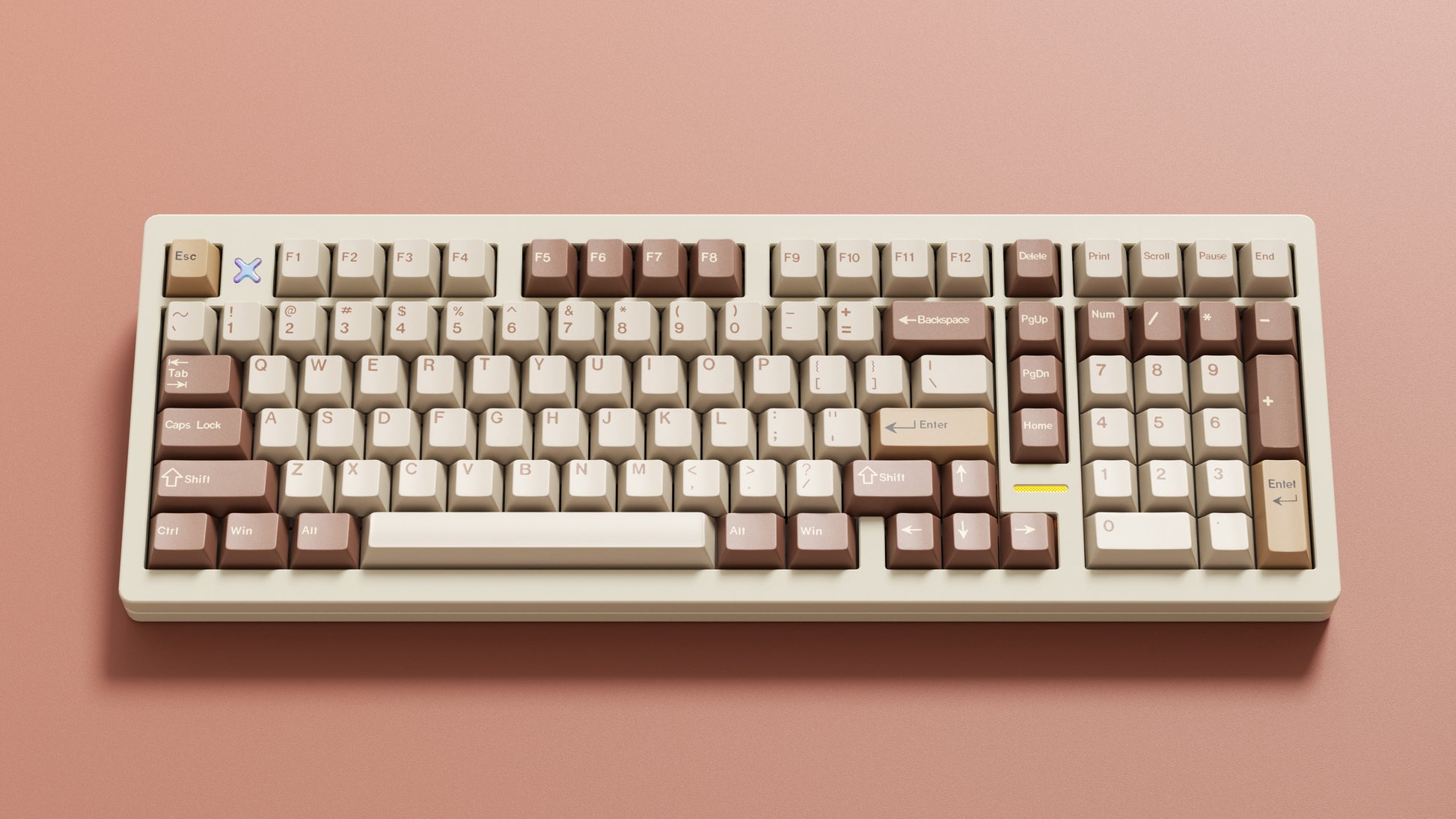

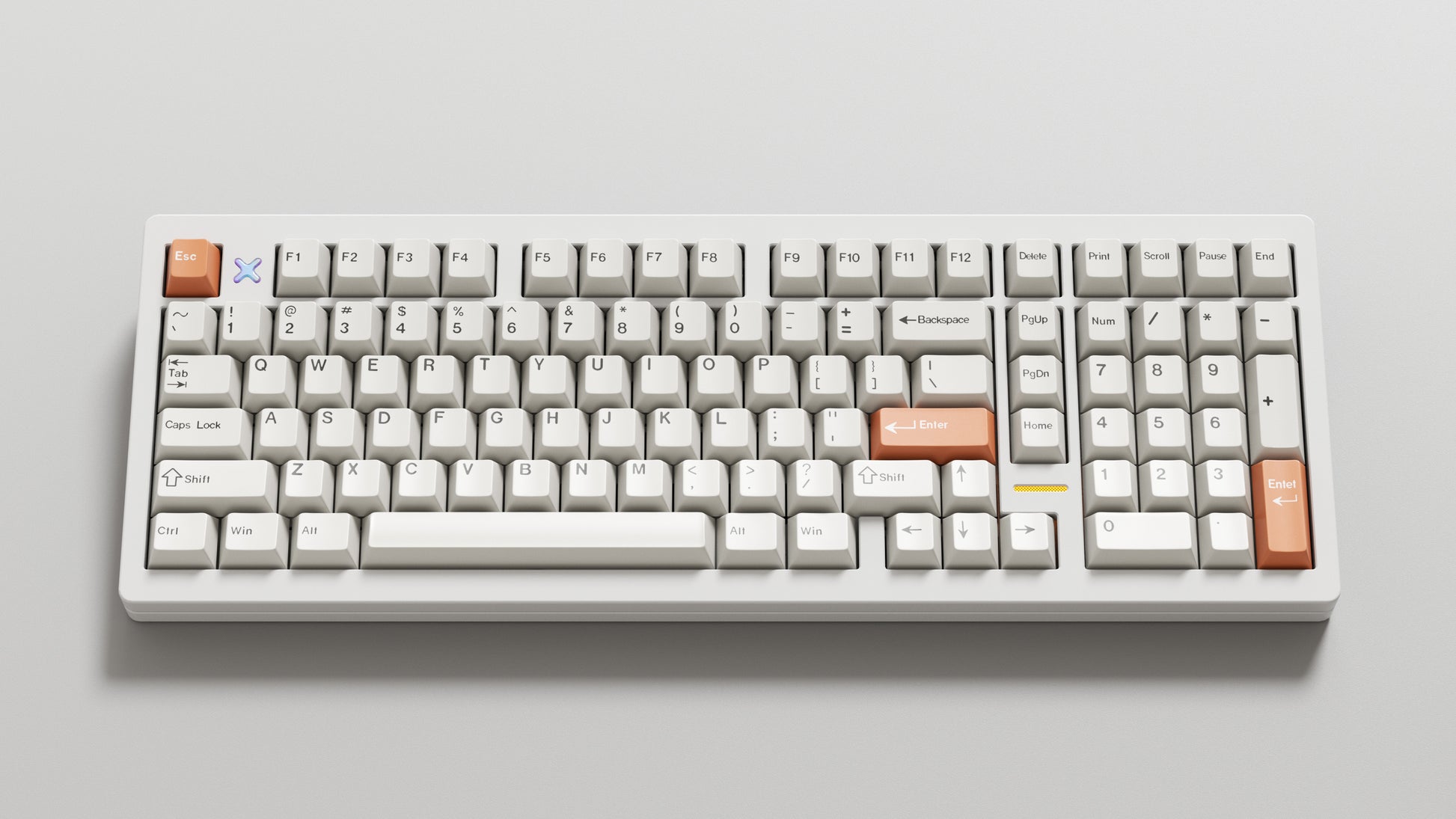

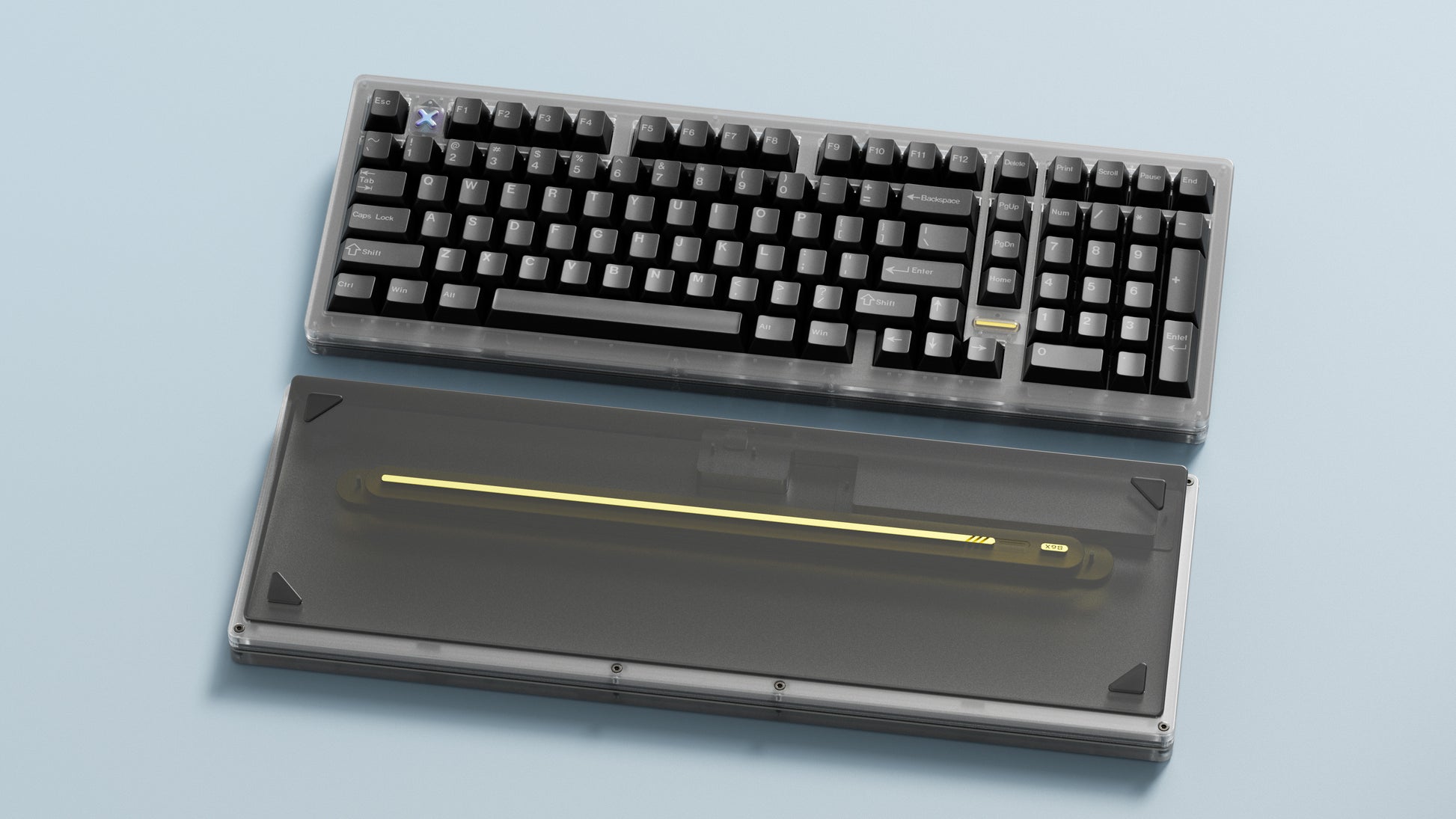

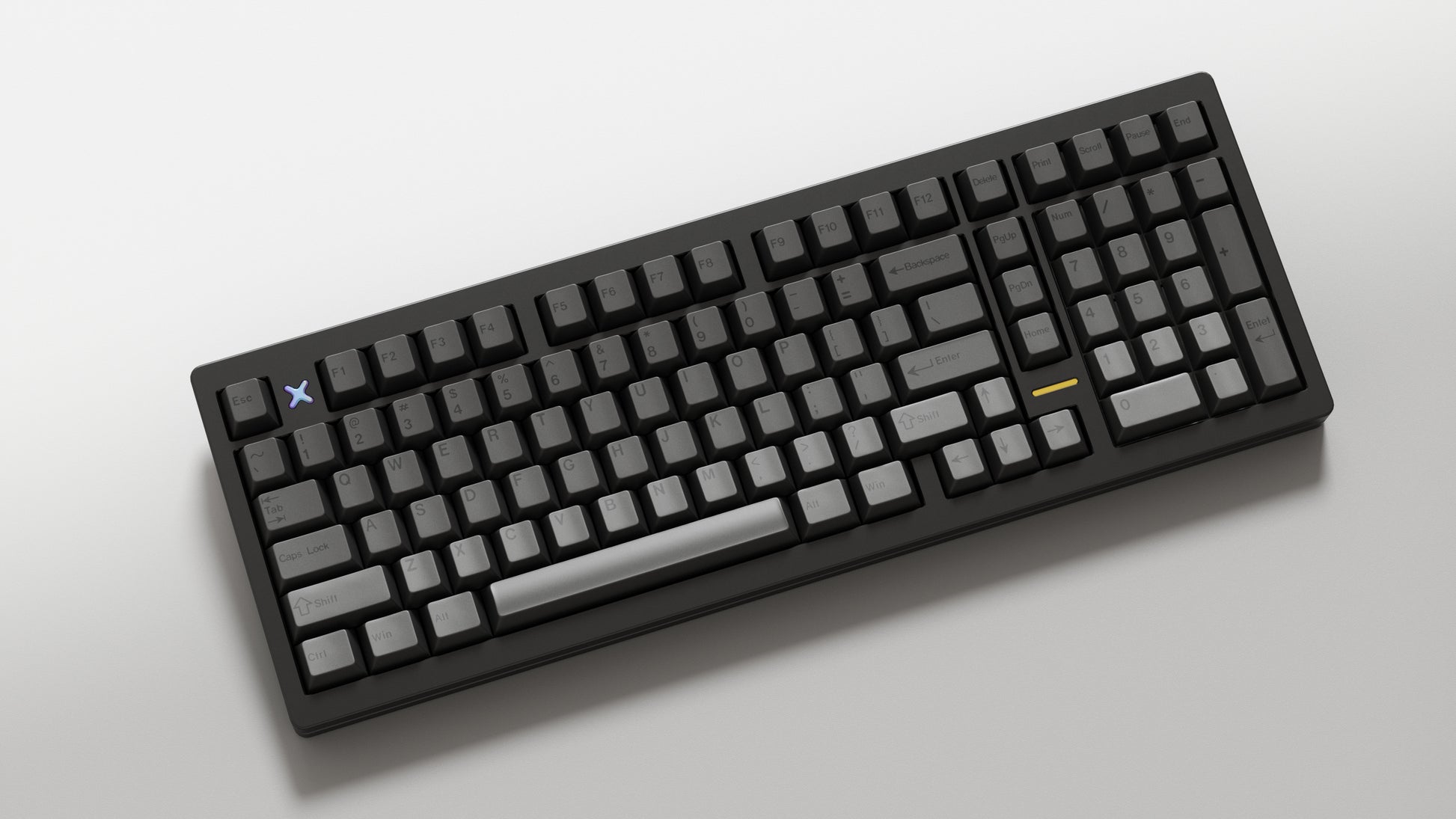

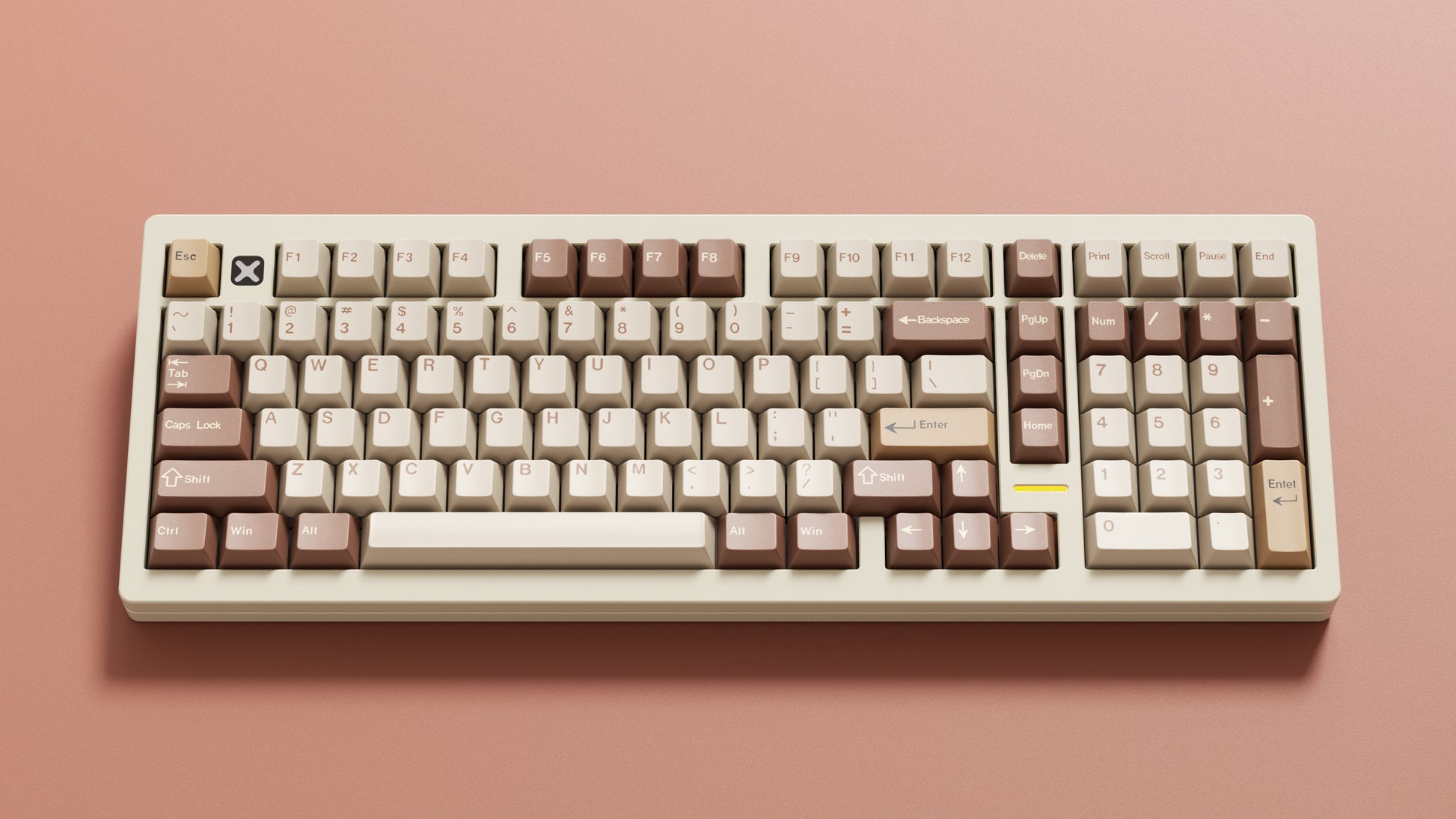

  • Case material:E-White+E-Pink(6063Alu, cataphoresis), E-White+E-White(6063Alu, cataphoresis), Creamy white(6063Alu, cataphoresis)+Brown 7584u(6063Alu, anodized), Black+Black(6063Alu, anodized), Grey 416U+Blue 288U (6063Alu, anodized), Semitransparent(PC)
  • Plate: 1.5mm
  • WIND X98 R2 Bluetooth PCB polling rate: 1000hz in wired mode，800hz in bluetooth mode.
  • WIND X98 R2 Bluetooth PCB Latency Rate：1.25ms
  • WIND X98 R2 Wired Polling Rate: 1000hz
  • Wired pcb support VIAL, bluetooth pcb support LDN(with 3000mah battery)

The pcb layout of group buy order will be updated as this.

The normal pcb and the southpaw pcb is compatible,for hotswap pcb, no need to solder sockets, only need to change the direction of switches then can use ISO layout.
