【GB Sale】WIND SIN65

【GB Sale】WIND SIN65

$288.00 USD
$288.00 USD
Sale Sold out
Shipping calculated at checkout.
Color option
PCB option

Group Buy Date: 19th Sep to 19th Oct 2023(ended)

Group Buy Payment: On our vendor list according to your country address.

Details: https://geekhack.org/index.php?topic=121391.0

Note: It does not include any stabilzers,keycaps,switches for this keyboard kit when you receive this keyboard.

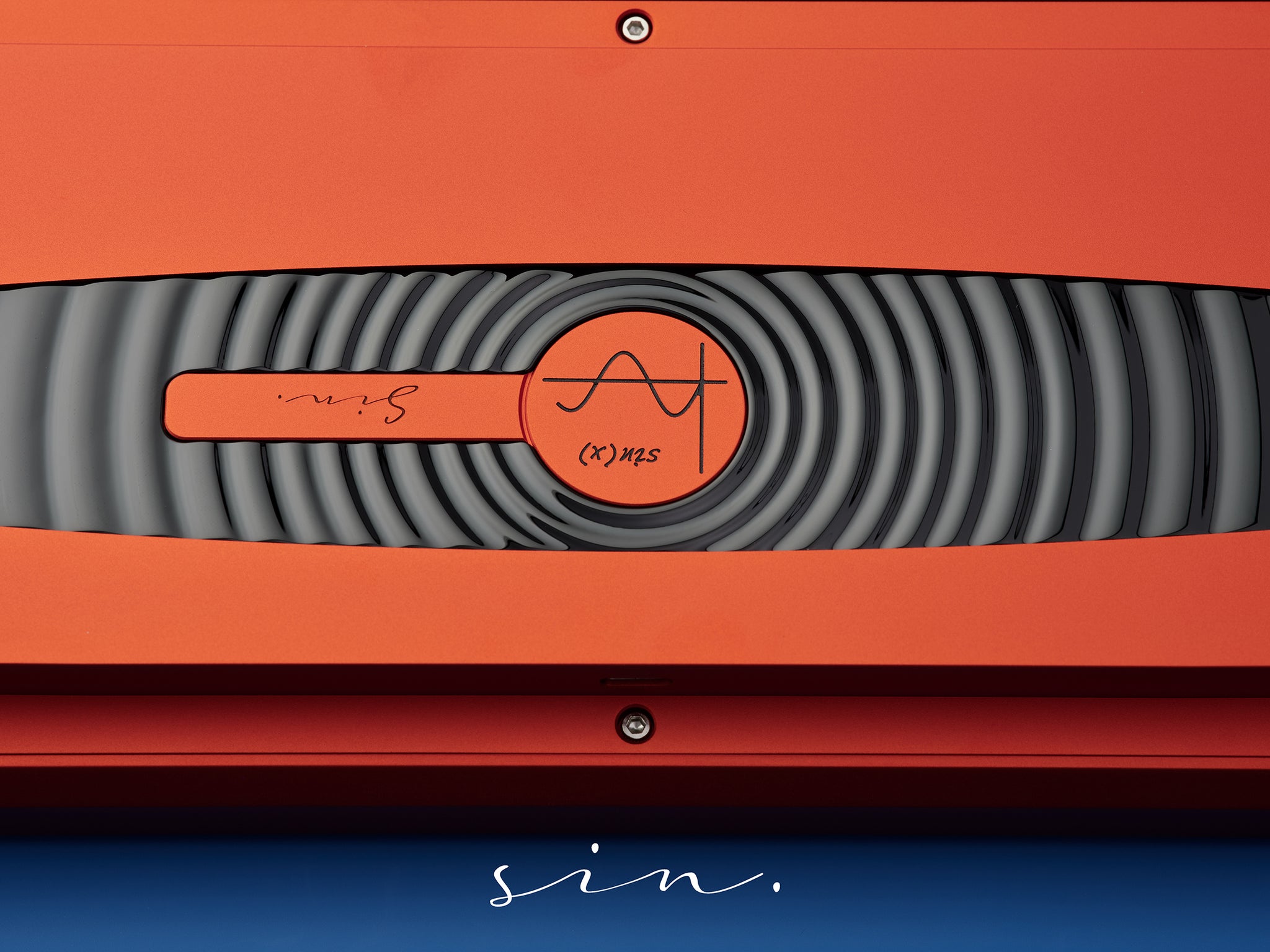

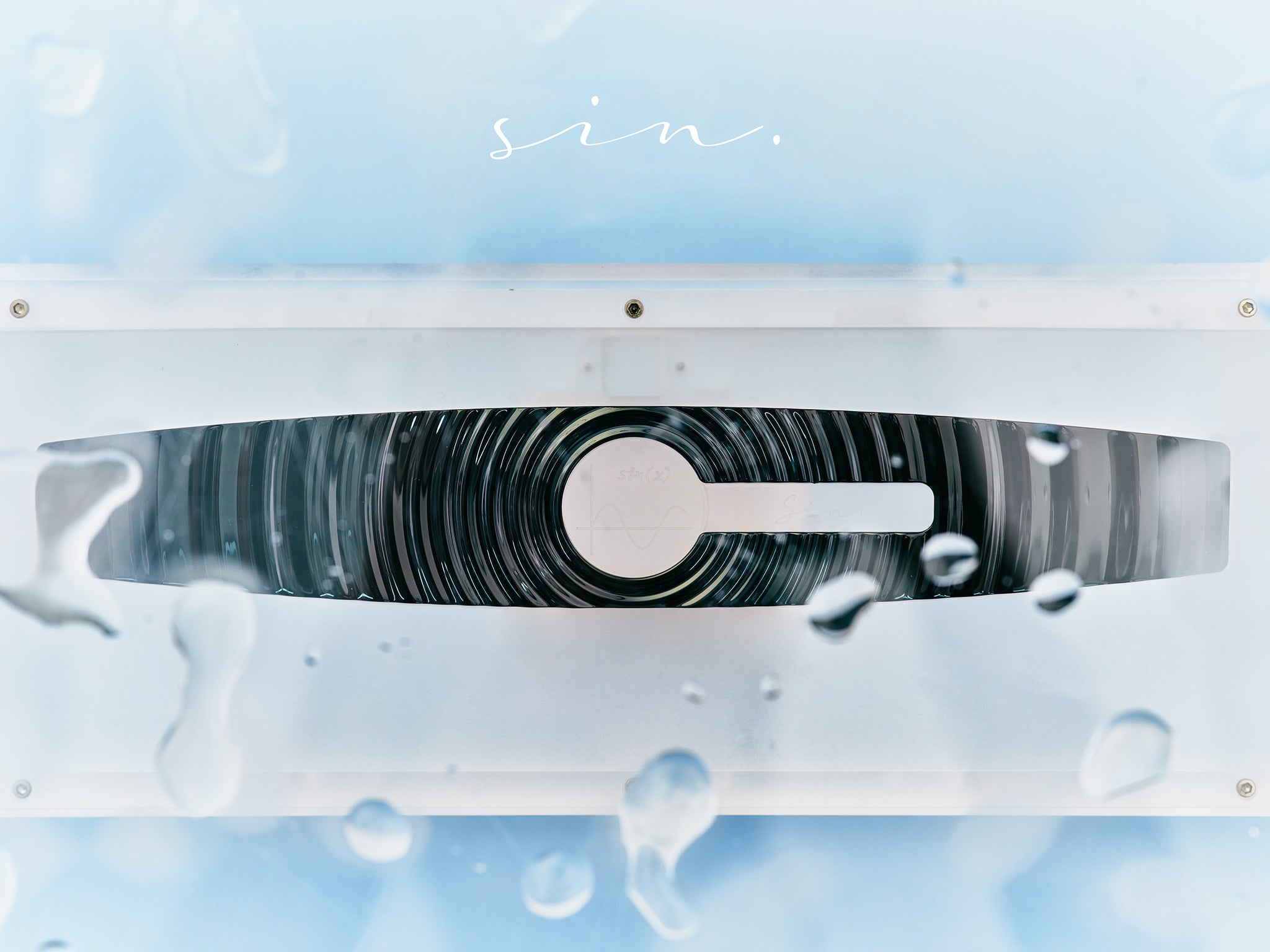

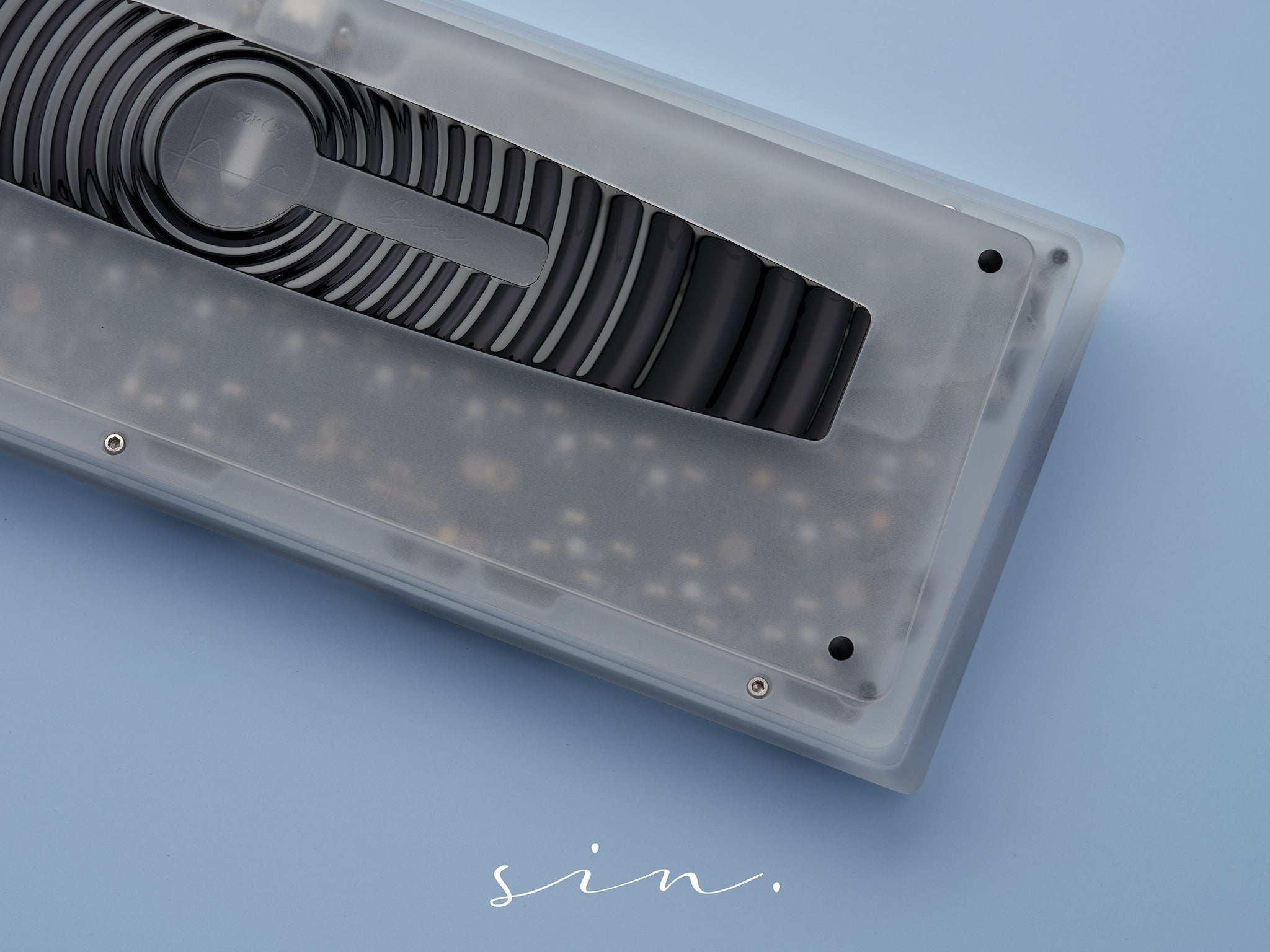

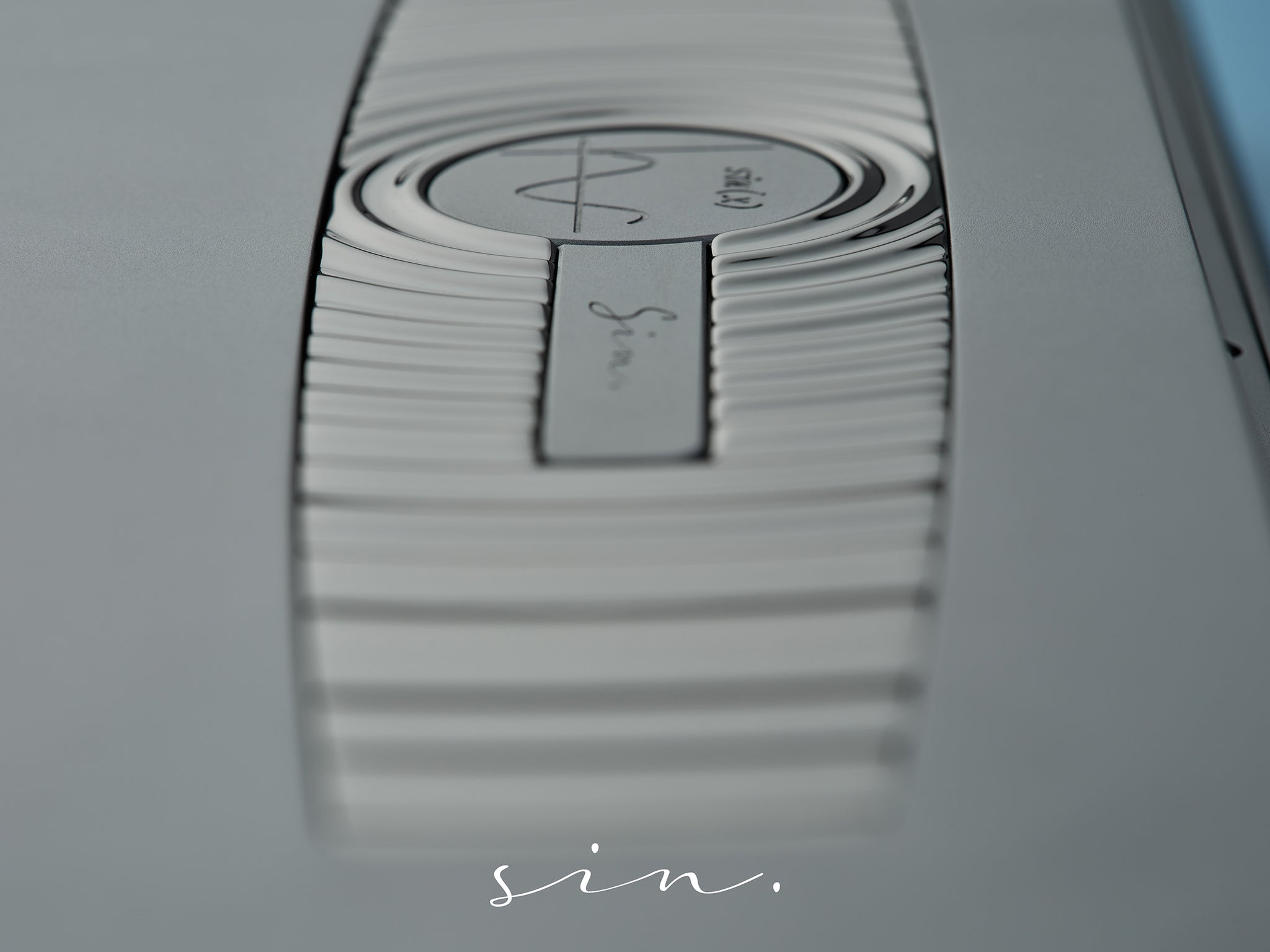

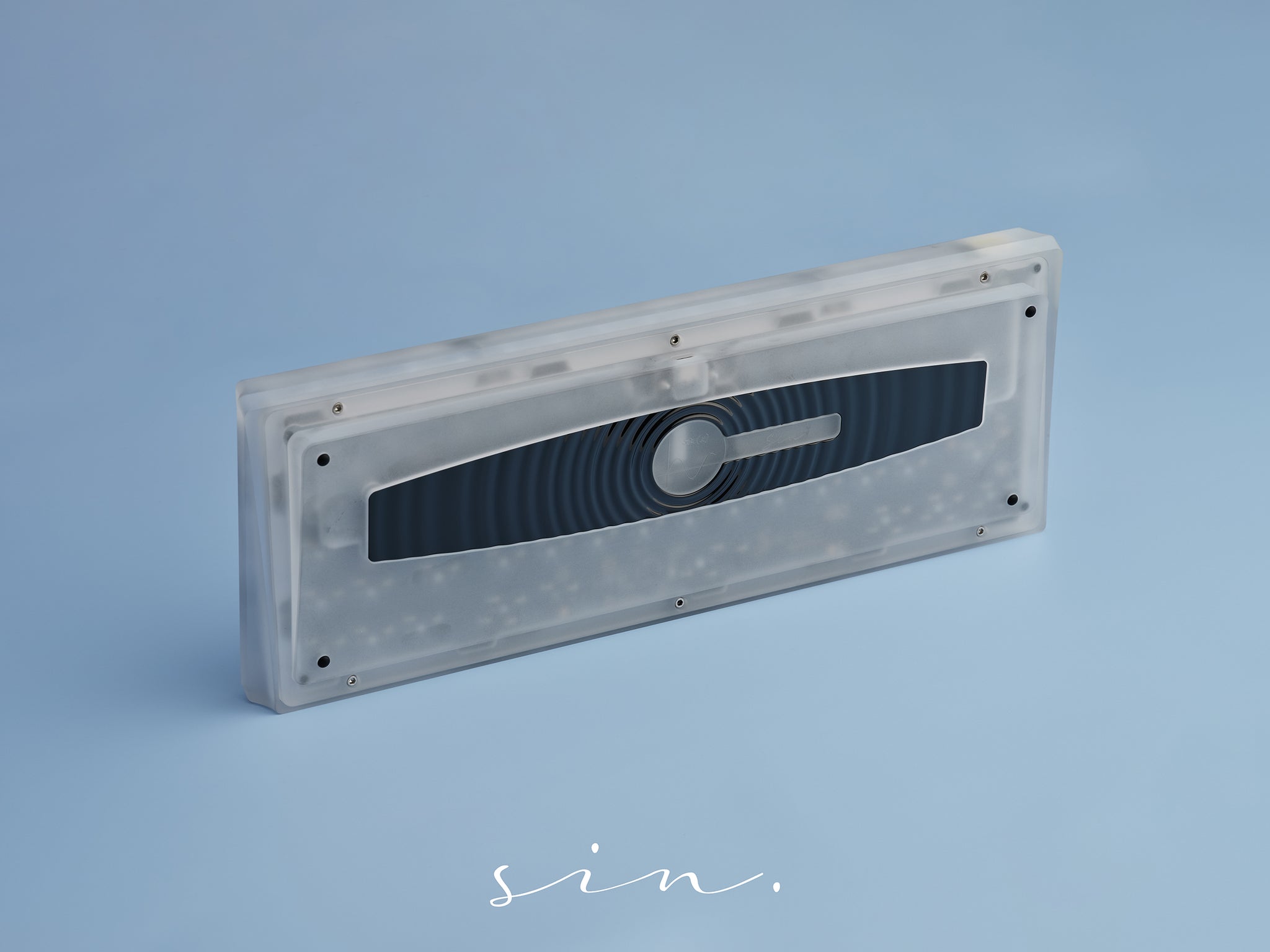

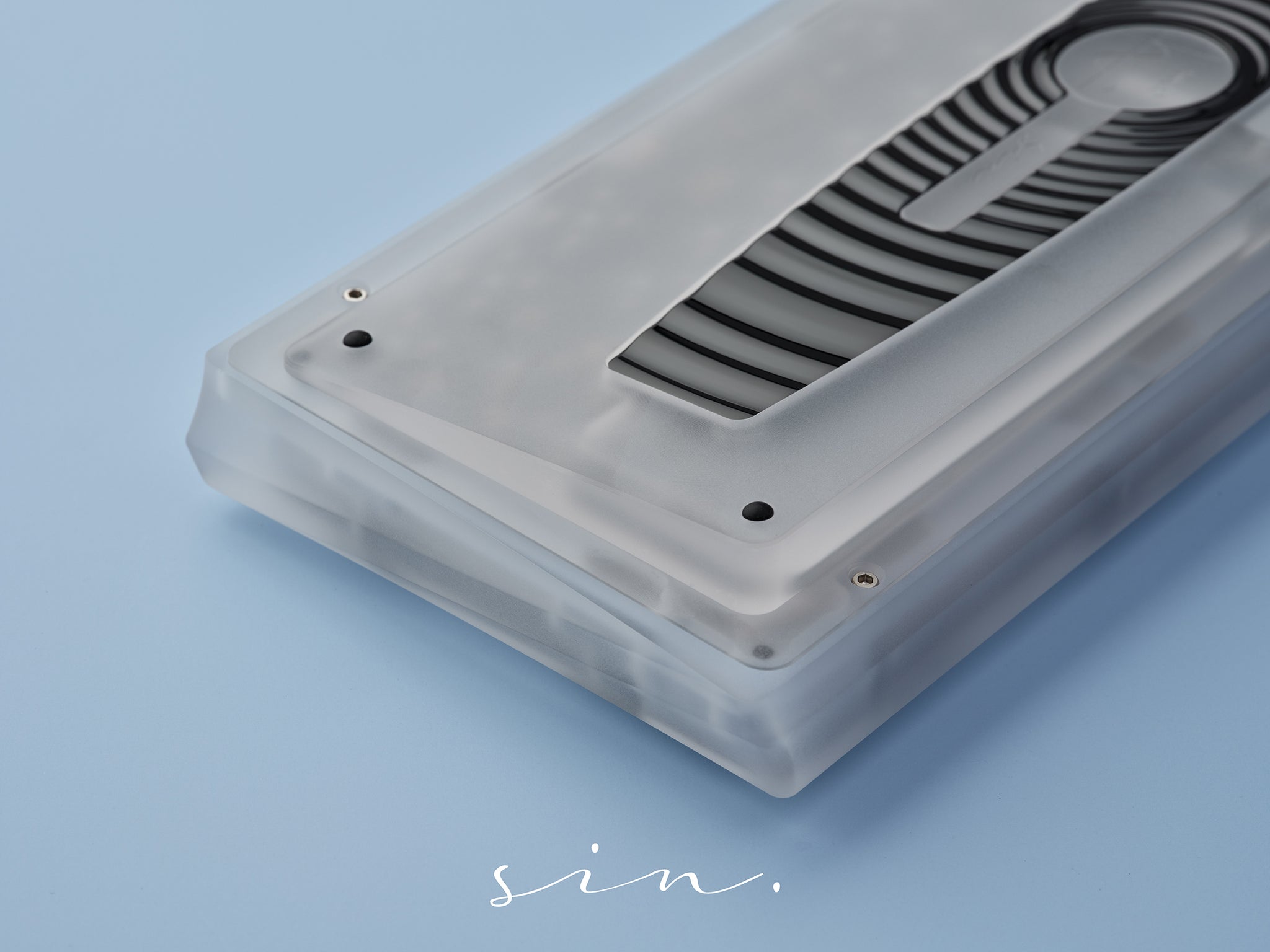

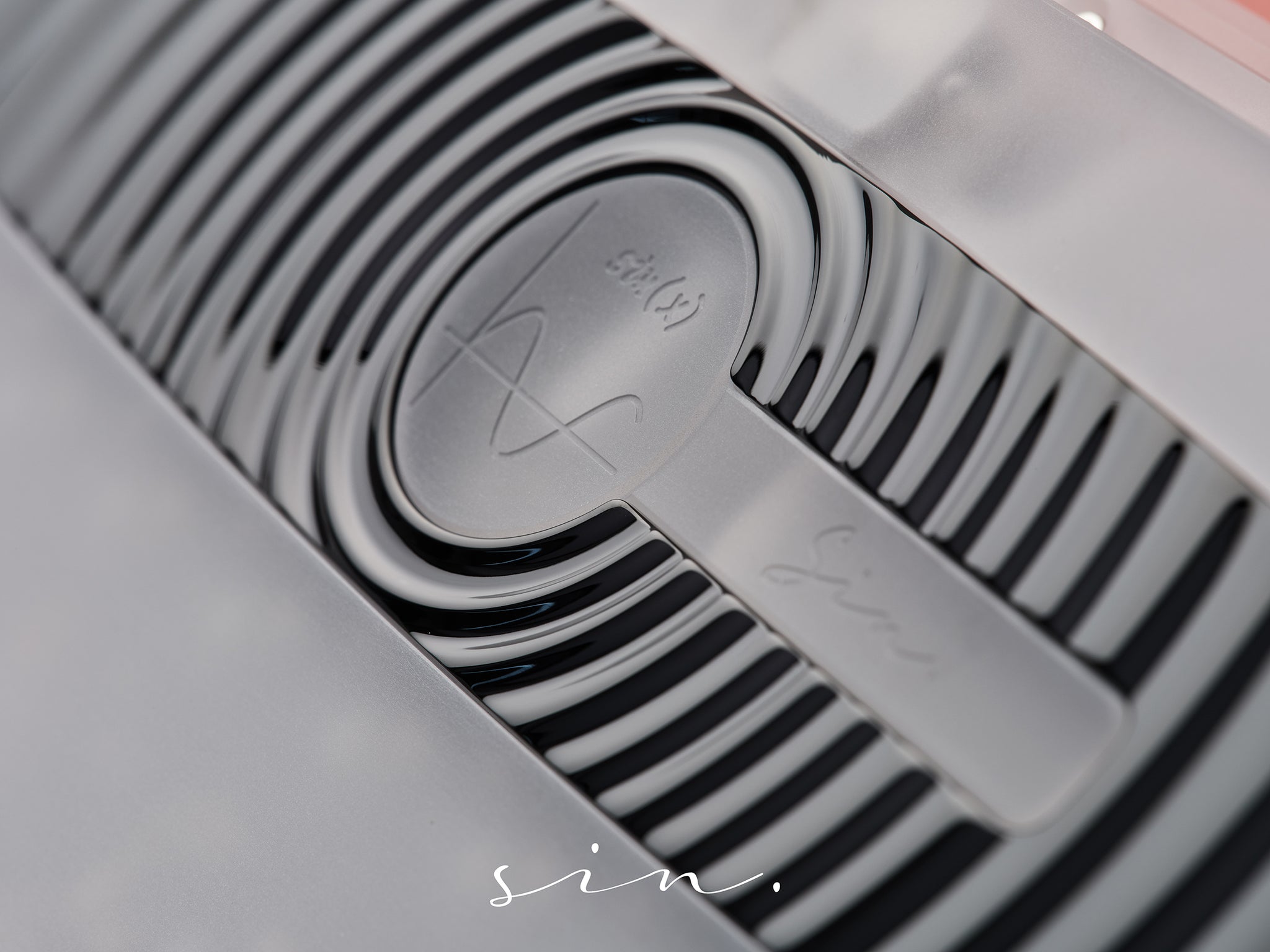

The formula image in the round part on the semitransparent bottom case will also be filled oil as other CNC case,pls note this, since the prototype we send that is without oil filled.

wind sin65 vendor list

USA:
https://cannonkeys.com/

Canada:https://www.ashkeebs.com/

Korea:https://www.monstargears.com/

Vietnam:https://thekeebs.store/

Thailand:https://ntchkeys.com/

Malaysia：https://www.rebultkeyboards.com/

Philippines/Singapore：https://zionstudios.ph/

Japan：https://basekeys.jp/

Indonesia：https://kukey.studio/

South American:https://fancycustoms.com/

Australia:https://www.switchkeys.com.au/

Europe:https://keygem.com/

United Kingdom:https://keebcats.com/

Taiwan：https://www.inpad.com.tw/

Others：https://windstudio.store/collections/wind-sin65

Shipping: 3-6 months

wind sin65 build manual

Sin65 build Instructions
Sin65组装说明
1.Install the round rubber feet into the bottom case.
   将底壳安装上硅胶脚垫

2.Install the weight.
   安装配重

3.Install weight with M2X4 screws
  用M2X4沉头螺丝将配重固定

4.Install type c daughterboard into bottom case with M2X5 screws.
   用M2X5平头螺丝将type-小板固定到底壳

5.Put battery foam into battery slot for wired version.
   Put battery into battery slot and connect battery with type c daughterboard for bluetooth version.
   组单模版本时将电池棉放入电池槽位，双模版本放入电池

6.Install silicone stand holder into the bottom case.
   将硅胶支撑柱安装到底壳对应位置

7.Put 1mm case foam into case(depend on your favourite).
   将1mm底棉放入底壳(根据个人喜好放入)

8.Put 2mm hotswap foam into case into case((depend on your favourite).
   将2mm热插拔棉放入底壳(根据个人喜好放入)

9.Install pcb stabilizer, install standoffs with M2X3 screws.
   安装卫星轴，使用M2X3平头螺丝安装铜柱

10.Put 0.5mm IXPE sheet,3.5mm foam onto PCB
     (Need to replace 5mm foam instead of 3.5mm if you want to build plateless mount,only support plateless mount on soldered pcb)
     依次安装0.5mm轴下垫和3.5mm夹心棉(如果组无钢结构，需要将3.5mm夹心棉更换为5mm夹心棉)

11. Put on the plate
      将定位板安装上

12.Fixed the plate with M2X3 screws
     使用M2X3沉头螺丝将定位板固定

13. TOP mount or Gasket mount build
      组TOP结构或者Gasket结构

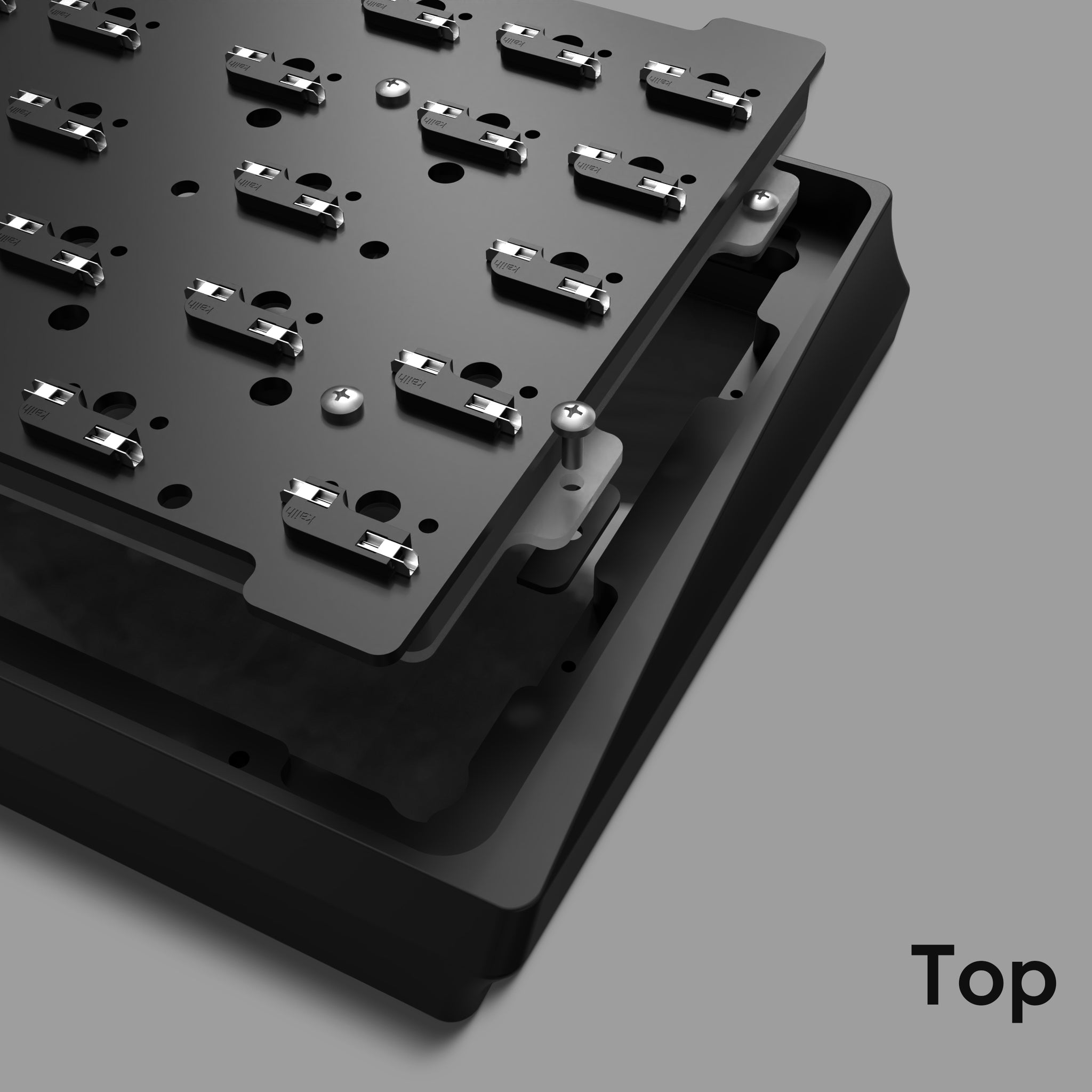

① Top mount build
Stick the silicone part onto the plate
将TOP硅胶块粘到定位板上对应位置

Fixed the internal structure into top case with M2X5 screws
使用M2X5的平头螺丝将内胆固定在上壳位置

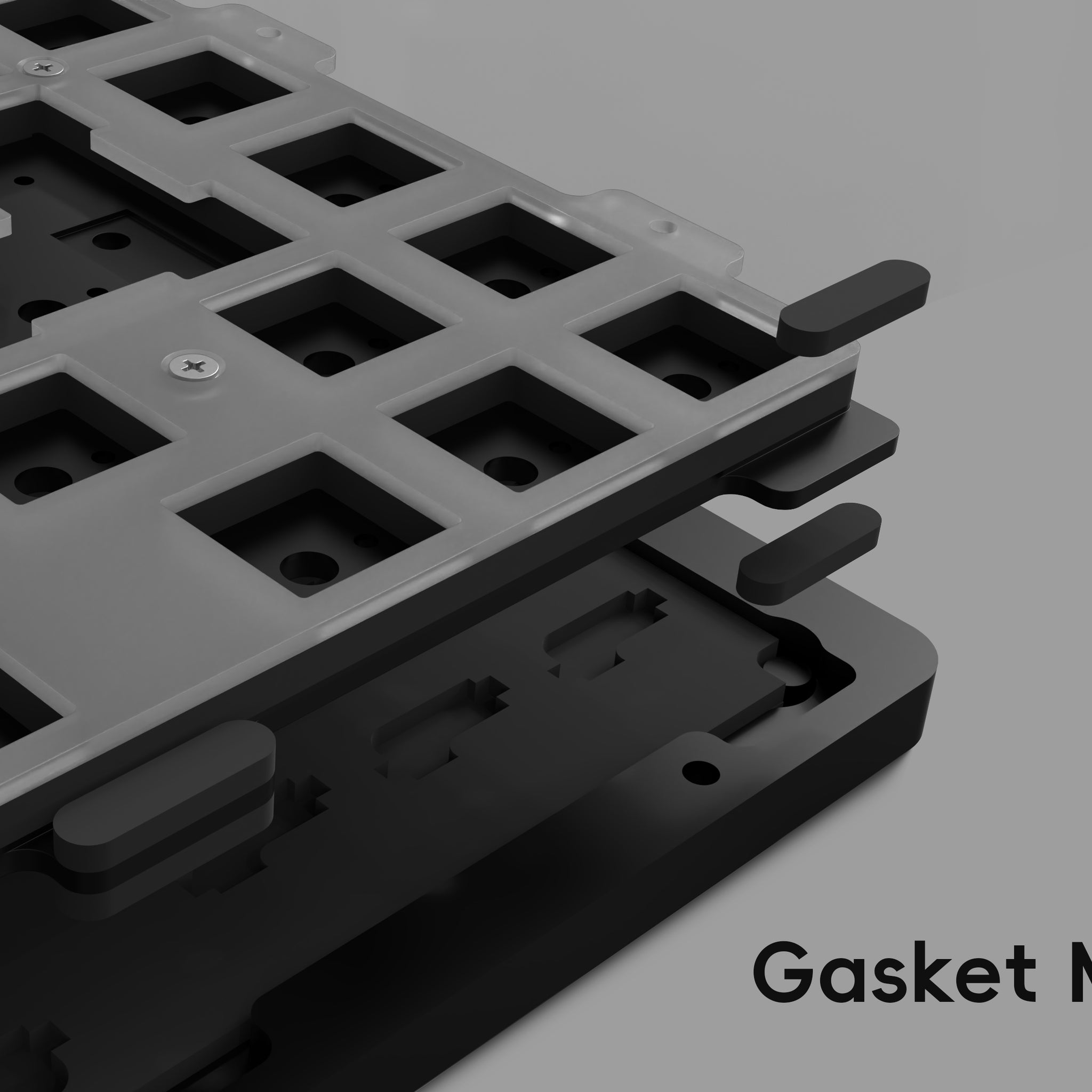

②Gasket mount build
Stick gasket onto PCB
将gasket棉条粘到PCB对应位置

14.Connect pcb with type c daughterboard
     PCB与底壳type-c连接

15.Fixed top case and bottom case with M2.5X8 screws.
     用M2.5X8圆柱头螺丝将上下壳固定


wind sin65 package include

TOP Case + Bottom Case + PCB + PC plate + alu plate + Foam Kit(1mm Poron+2mm hotswap +IXPE sheet+3.5mm poron) + Weight + accessories (With battery if choose bluetooth pcb)

View full details

Source of inspiration

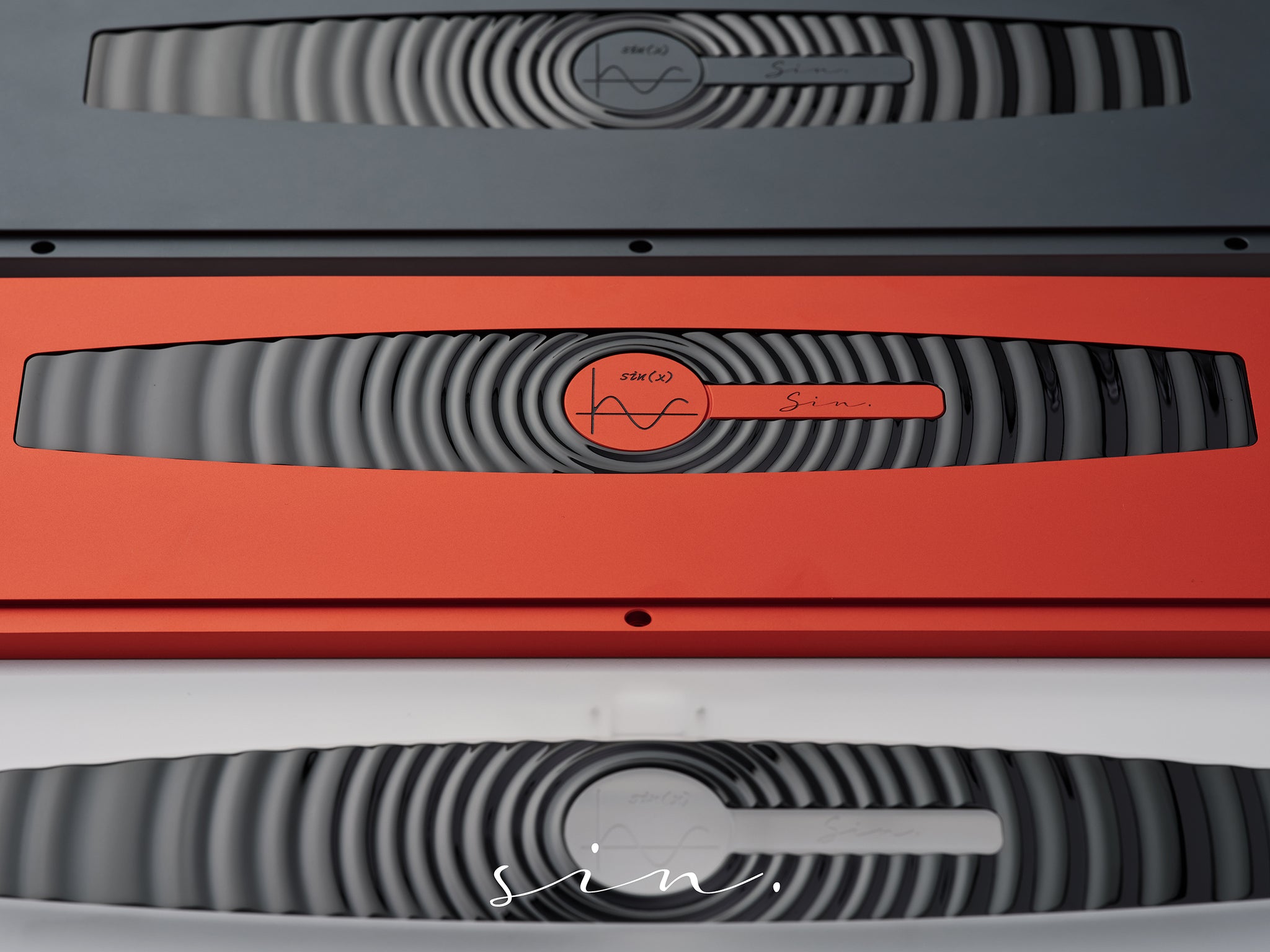

Speaking of sin, everyone is familiar with it. The Sinx formula Graph has been used in our mathematics learning throughout our school days. The image of the sinx formula Graph is a beautiful wavy curve, Centered on the origin of the X-axis and Y-axis，it extends upwards and downwards, forming a wavy shape that resembles peaks and valleys. Speaking of this, if you haven't been in touch with friends who forgot the sin formula for a long time, the image of the function will definitely appear in your mind, oh, it turned out to be this, remember it.

Sin65 Keyboard Feature:

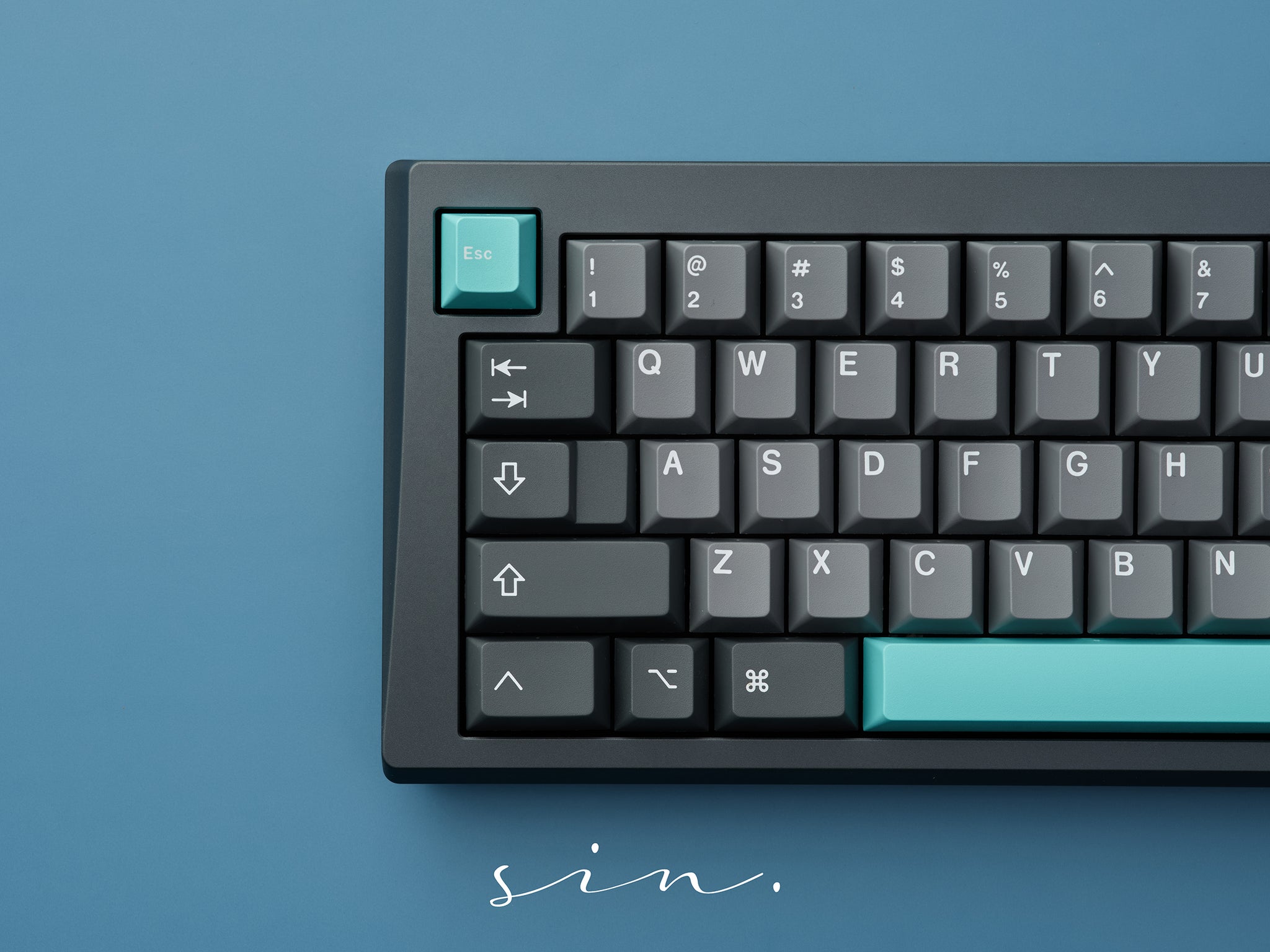

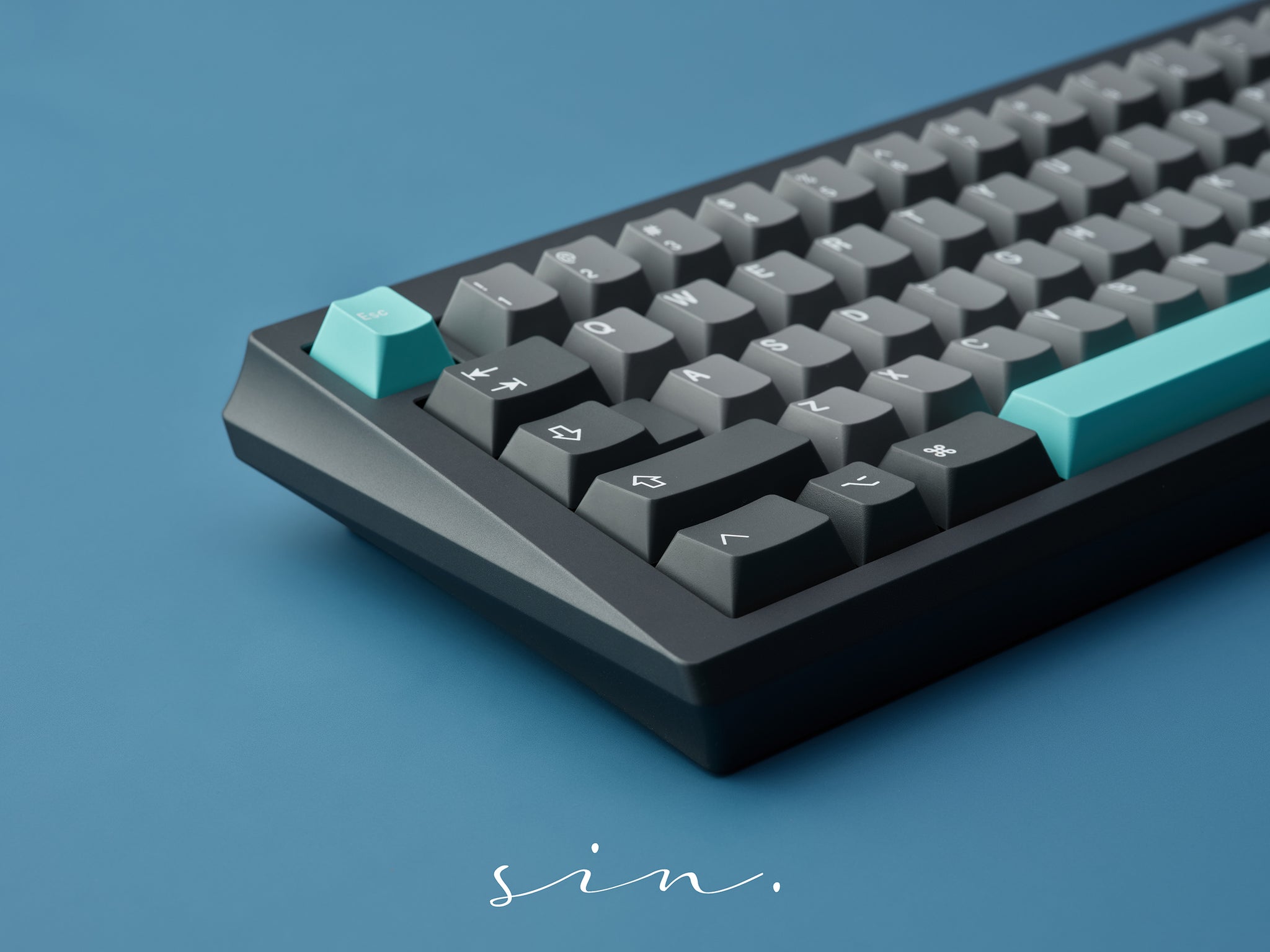

  • Separates the ESC key from the main key area, effectively reducing the risk of accidental touch.

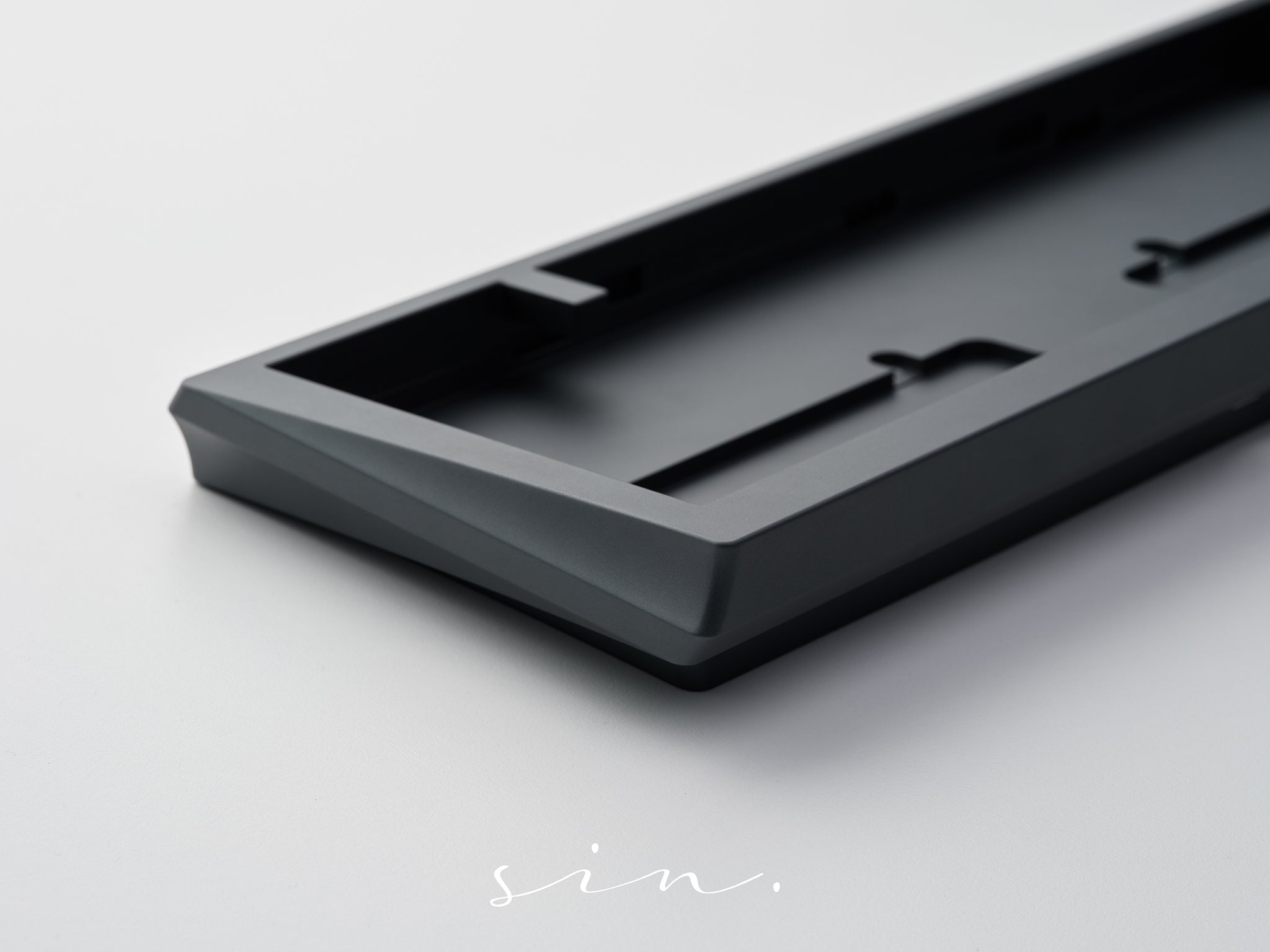

  • The curved surface CNC of side case is convenient to move and give finger warm place.

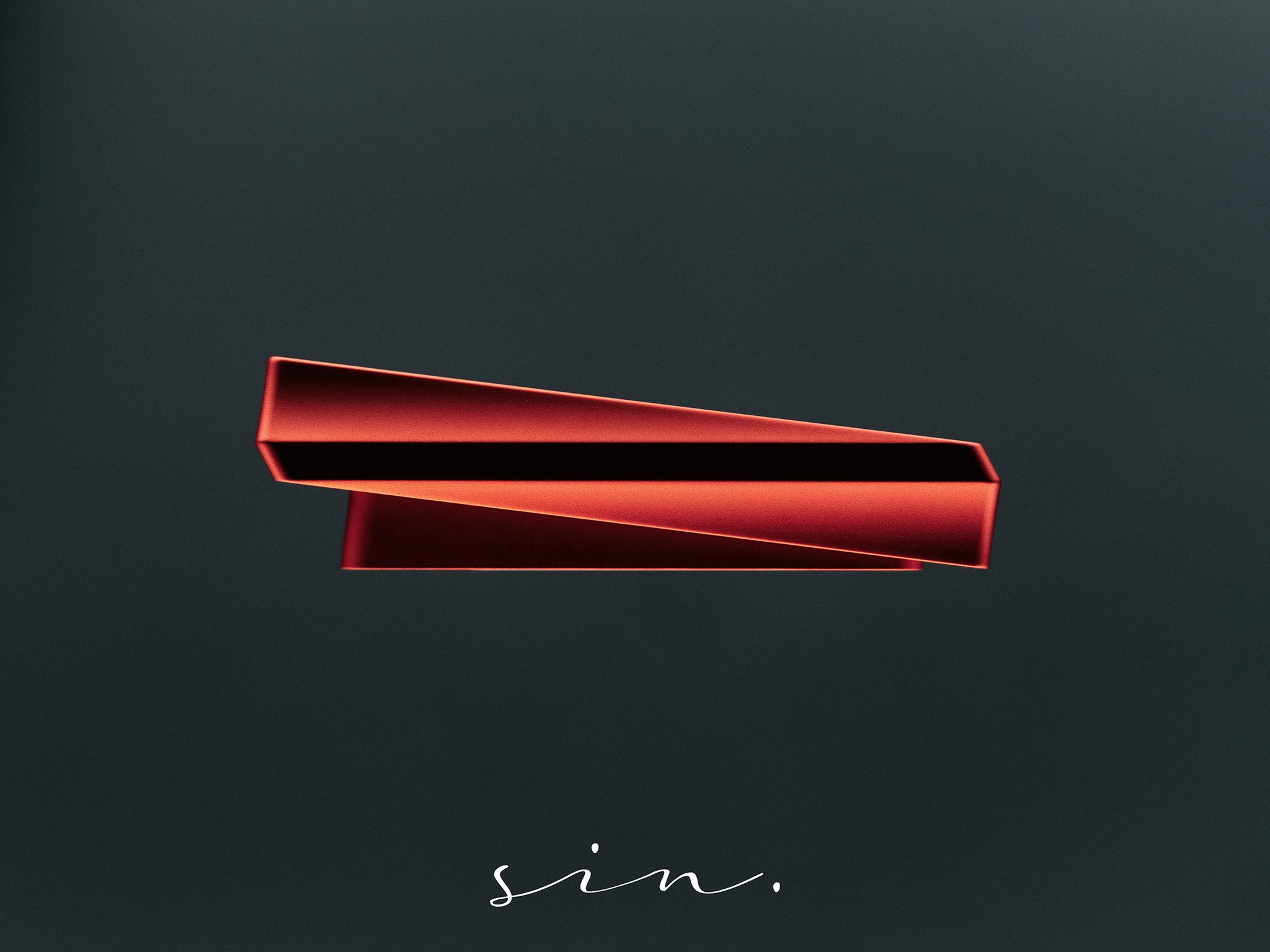

  • Cornered edges on the black pvd weight,make color more vision.
  • Top mount ，PCB gasket mont（soldered pcb support plateless ）

Sin65 Keyboard Specification:

  • Size: 33.6*12*3.35cm
  • 7° Typing angle
  • 65% Layout
  • TOP mount and PCB gasket mount design
  • Price：Wired $288,Bluetooth $308

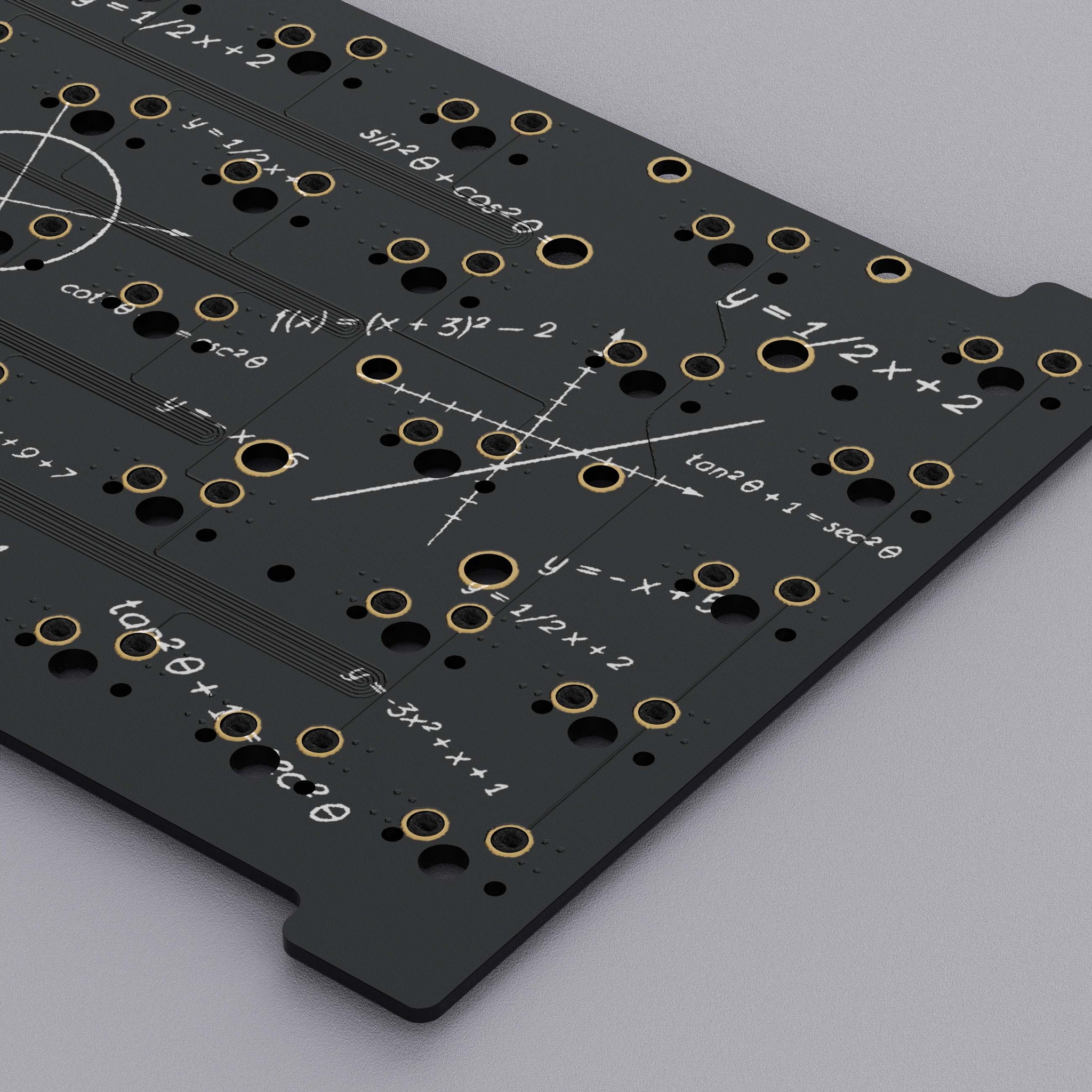

  • PCB:1.6mm black core board fr4. Wired hotswap, bluetooth hotswap, wired soldered available
  • Case material:
    Black, grey 445C,orange 1655C (6063Alu,anodized)
    Off-white,Green(6063Alu, cataphoresis)
    Semitransparent(composite)

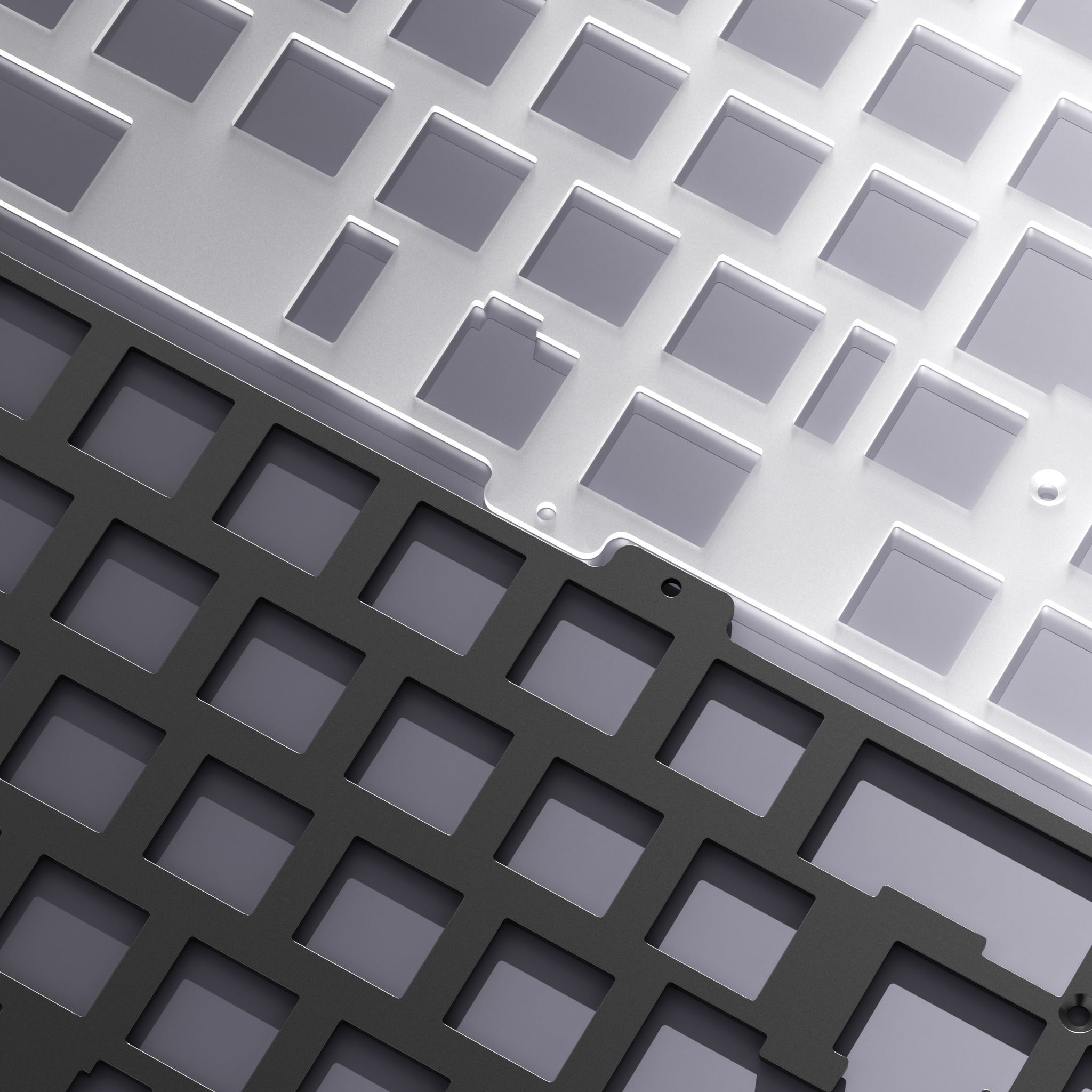

  • Plate: 1.5mm PC and alu plate both provide
  • SIN65 Bluetooth PCB polling rate: 125hz
  • SIN65 Wired Polling Rate: 1000hz
  • Wired pcb support VIAL, bluetooth pcb support LDN(with 4400mah battery)

Sin65 Keyboard Build Photo

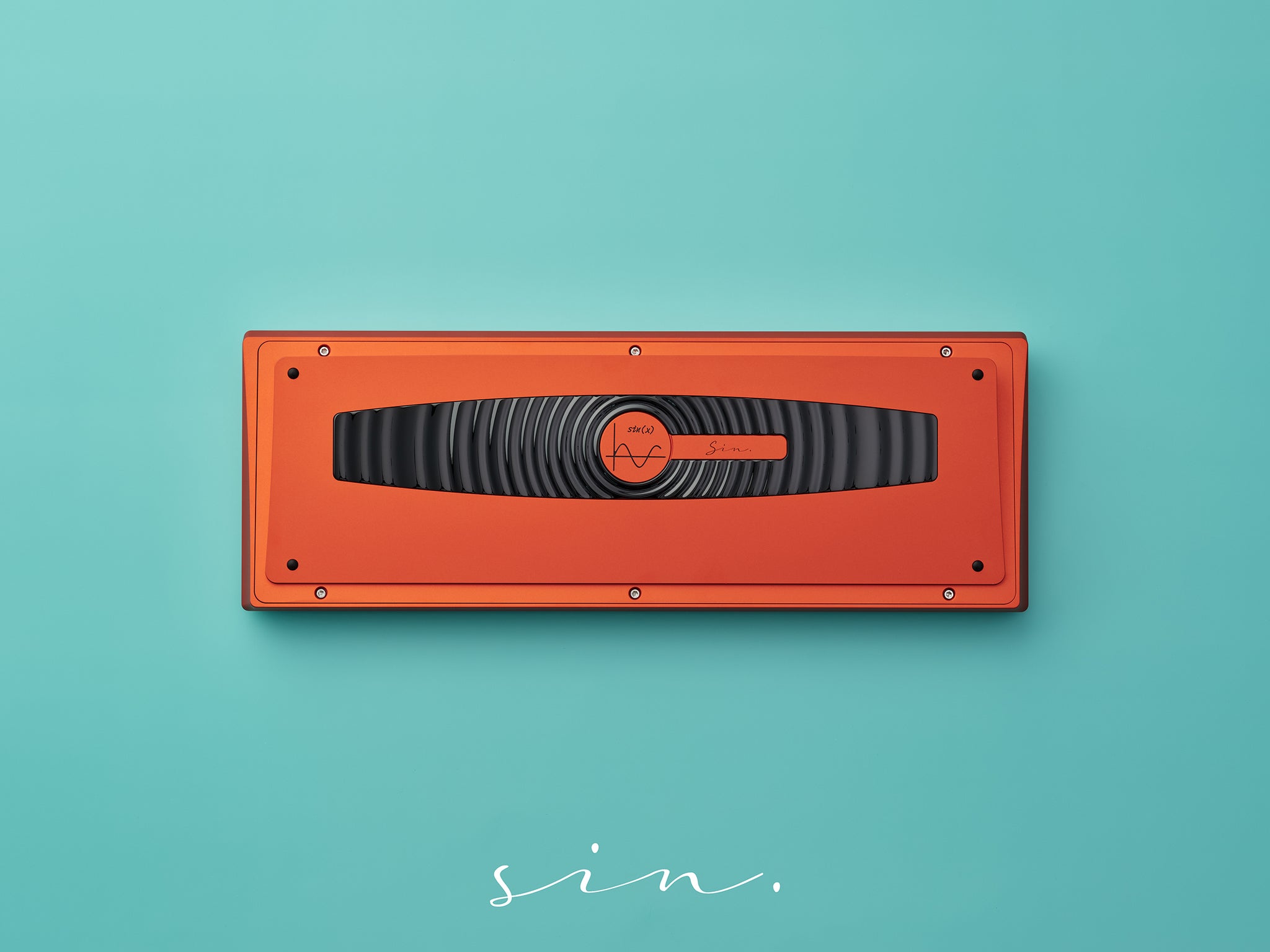

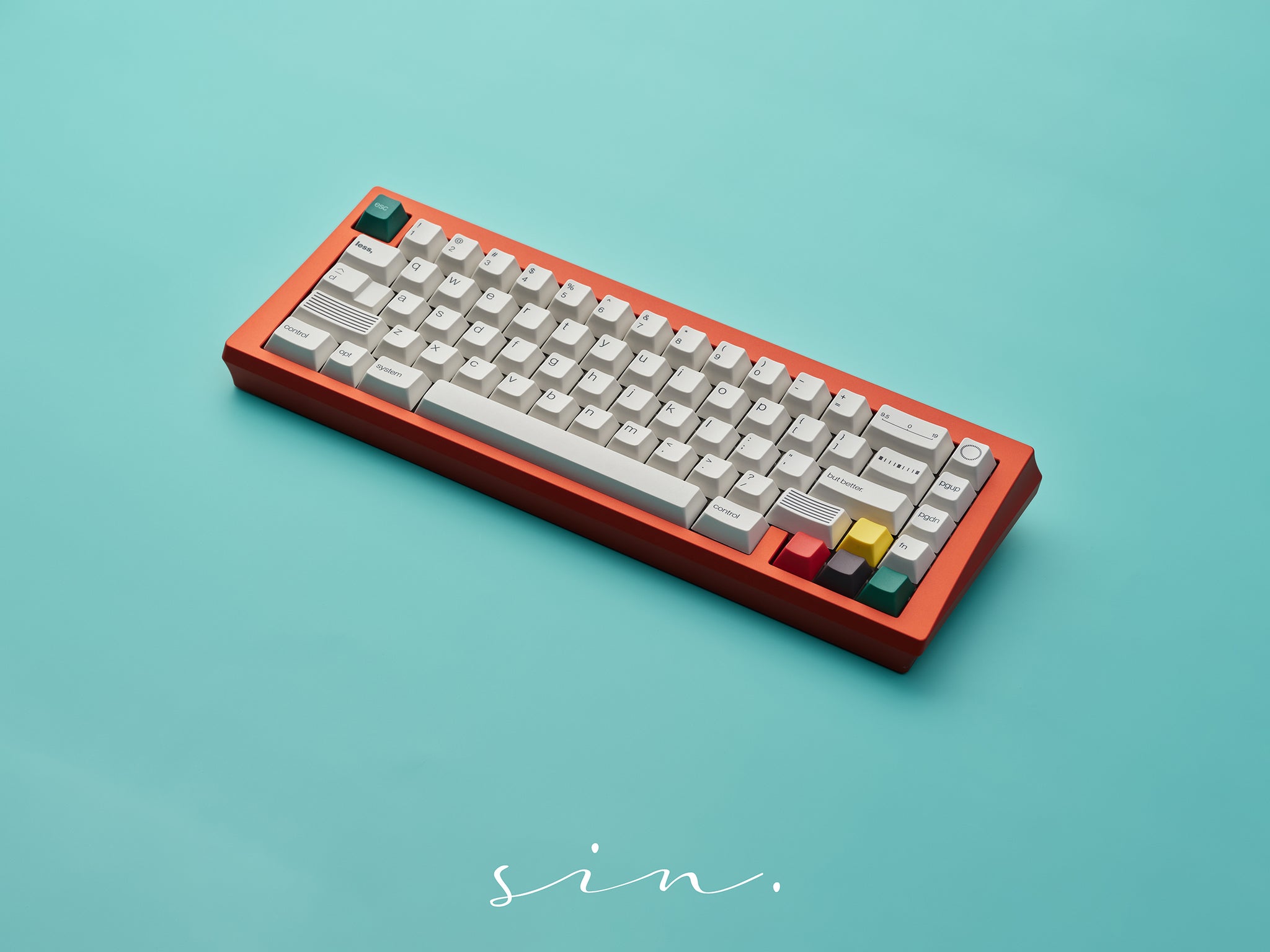

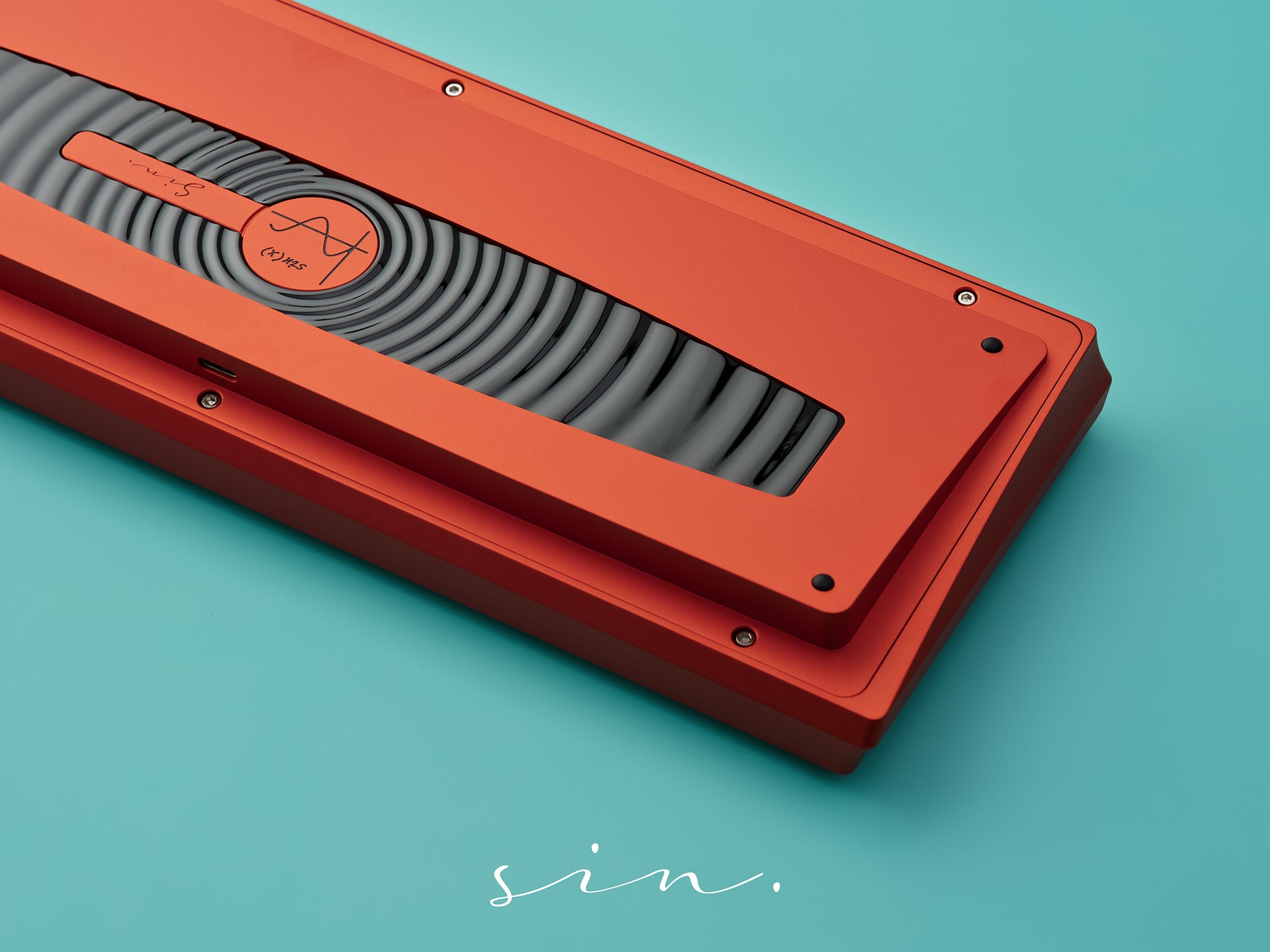

ORANGE 1655C + EPBT LESS BUT BETTER

GREY 445C + GMK MODERN DOLCH

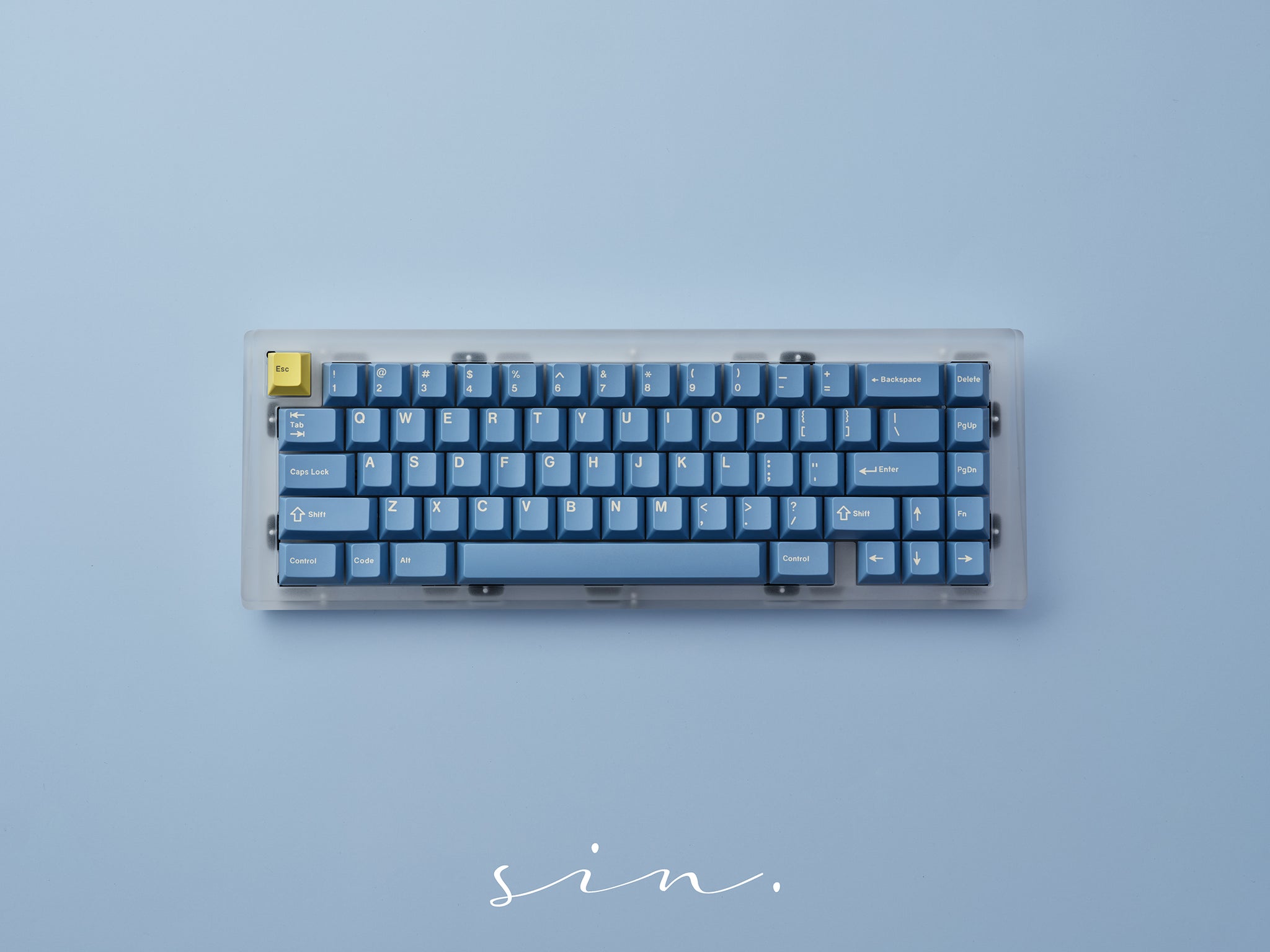

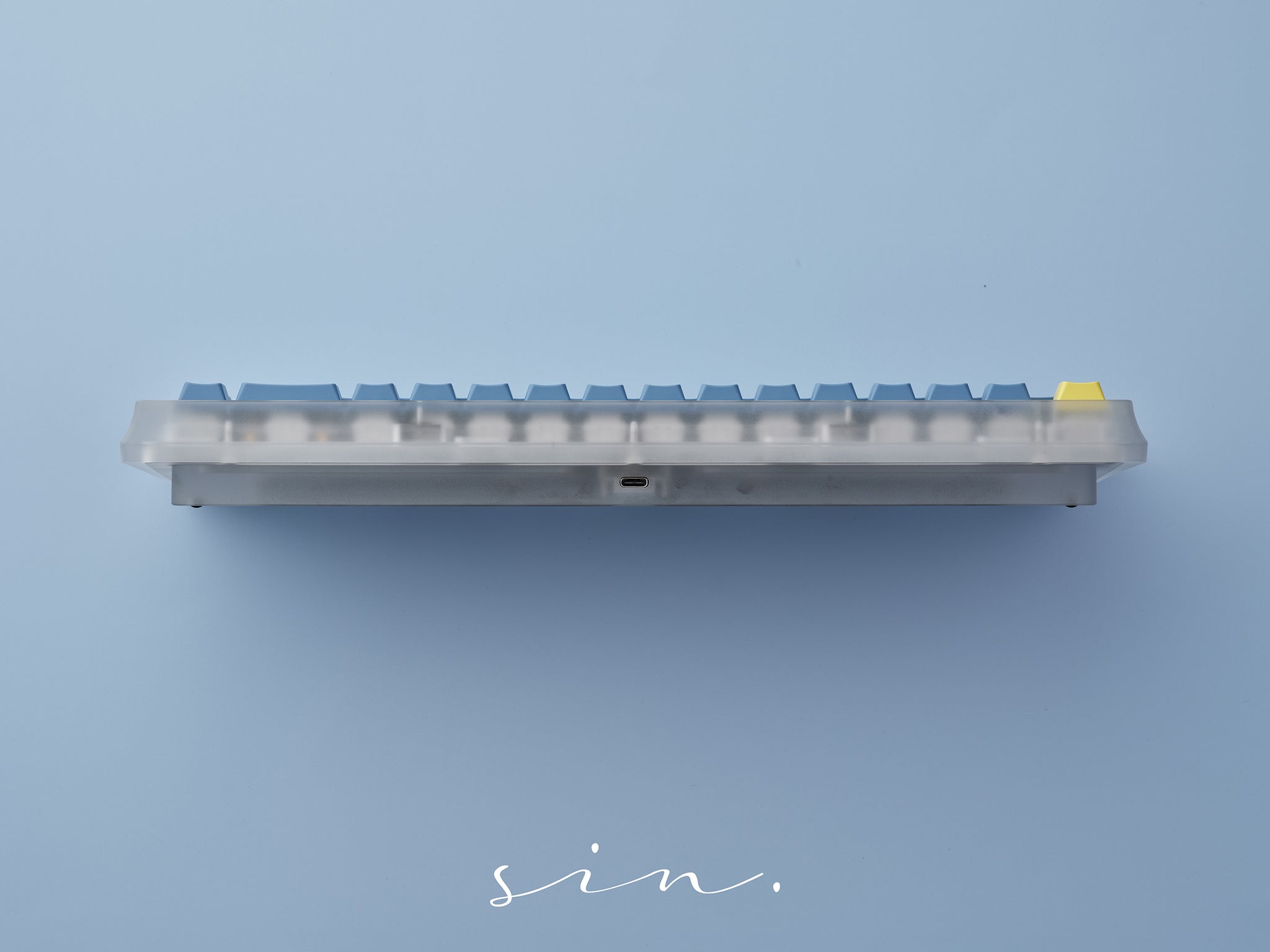

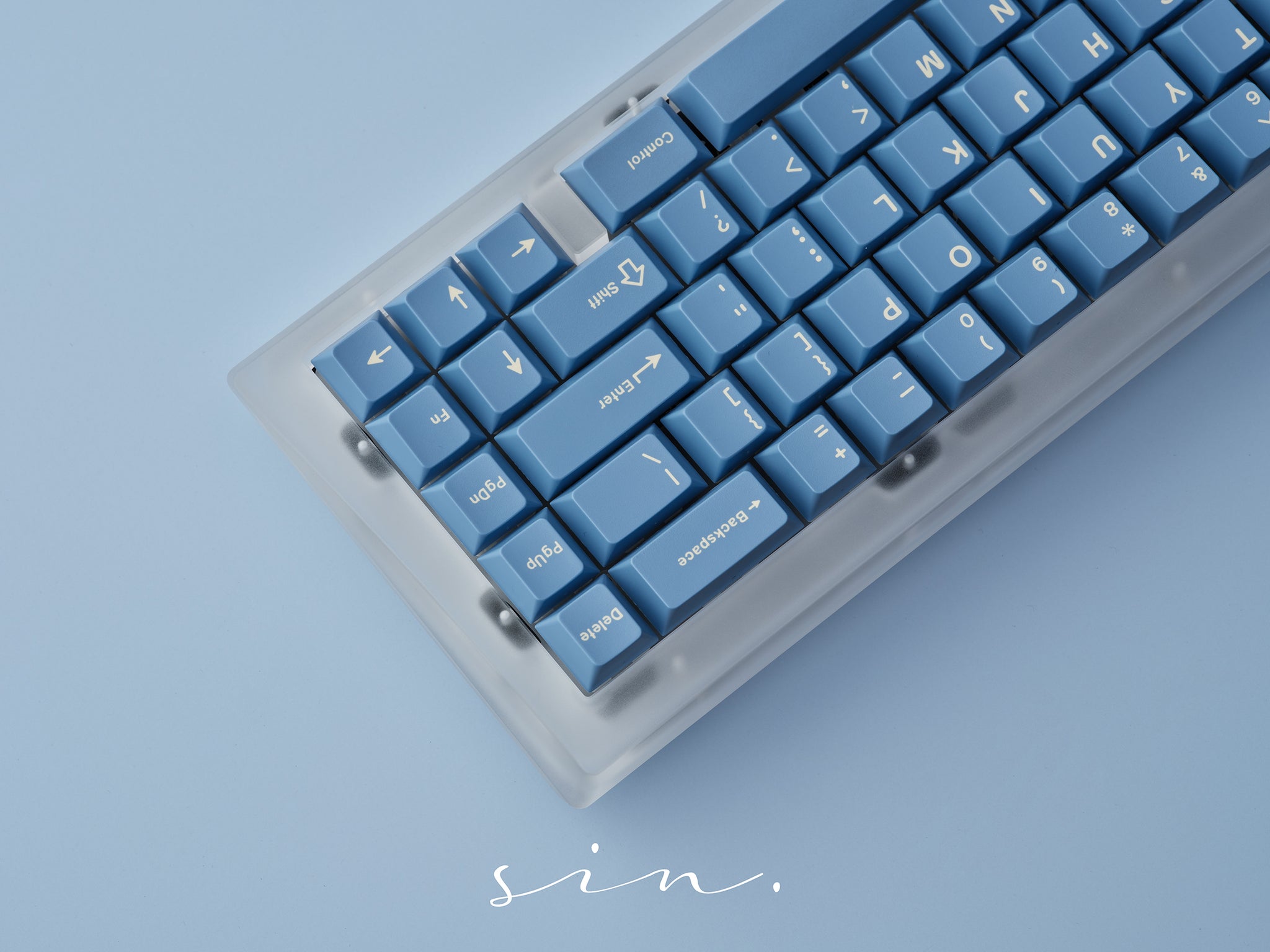

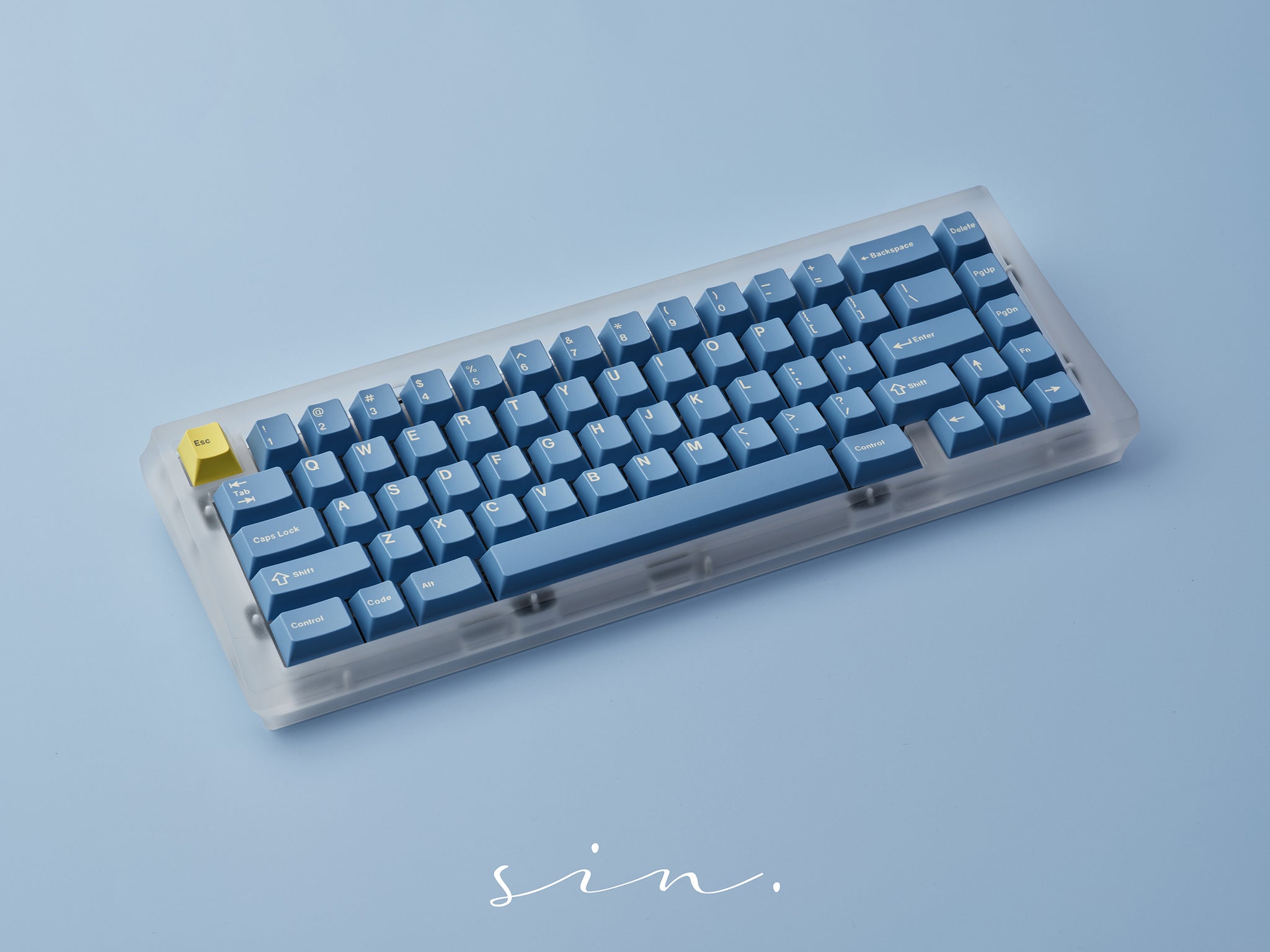

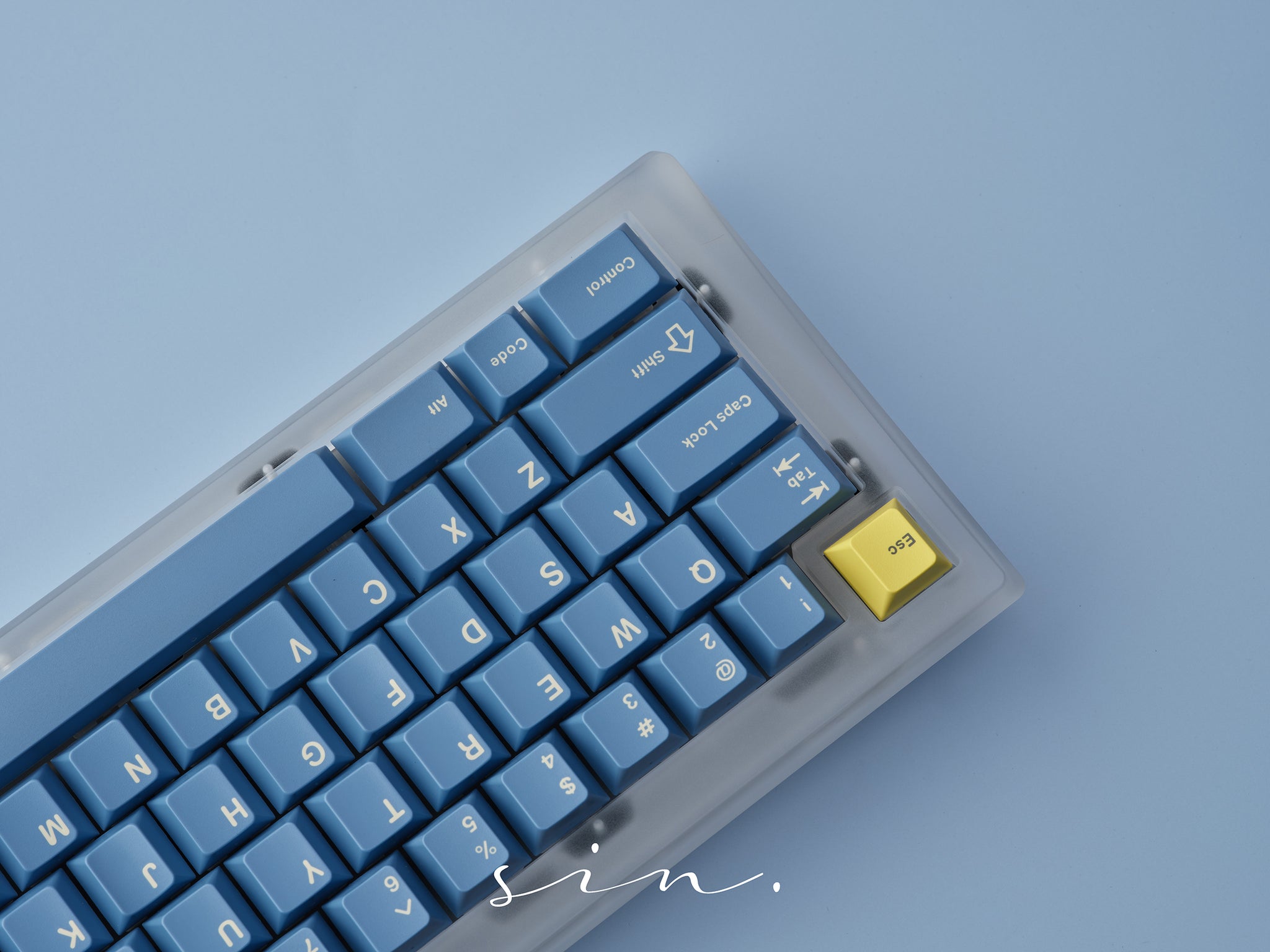

SEMITRANSPARENT + GMK COLUMBIA
